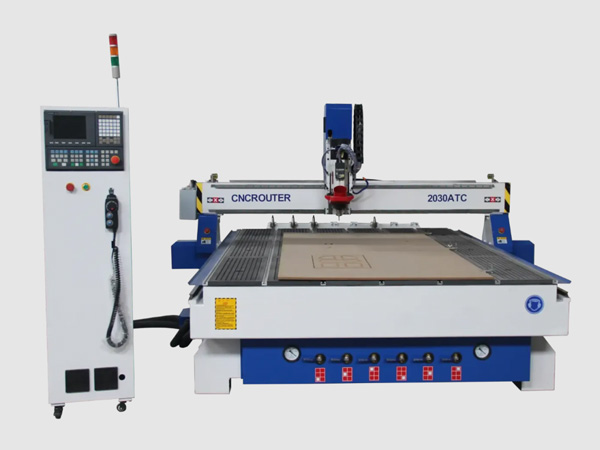

Technical Parameters of ATC CNC Router with Automatic Tool Changer Spindle:
Model | ST2030ATC-L |
Table size | 2000mmX3000mmx200mm |
Control system | Syntec 6MA |
Systemic resolution | ±0.0025mm |
Repositioning resolution | ±0.02mm |
Max running speed | 60m/min |
Max cutting speed | 30m/min |
Tool Magazine | Disc Type 10 tools |
Working voltage | 380V/3 Phase/50HZ |

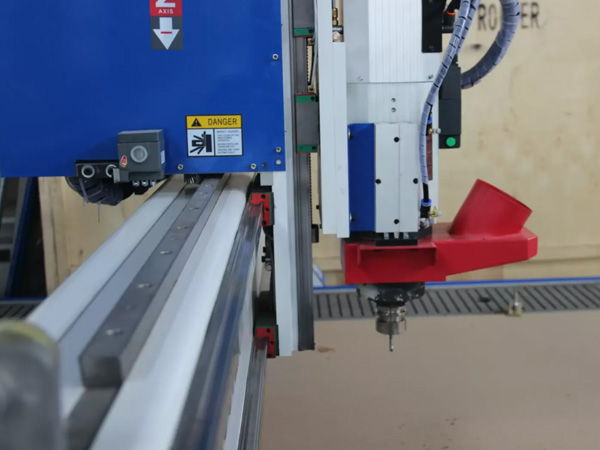

Spindle | 9.0KW HSD air cooling |
Spindle Speed | 24000r/min |
Working air pressure | 0.6MPa |
Table design | Pure adsorption one zone Double layer 30mm |
Vacuum Pump | 5.5KW/160m3/tongyou pump Including non-return valve and filter |
Positioning Cylinder | 3 |
Driving system | Yaskawa 850W servo motor and drivers |
Software | Artcam/Type3/JDPAINT (copy) |
Weight | 2400kg |
Optional Items of ATC CNC Router with Automatic Tool Changer Spindle:
Spindle | 12.0(ISO-30, HSK-F63) | HSD air cooling |
Table Design | Pure adsorption 2 zones(2 stations working ) | Double layer30mm |
Vacuum Pump | 7.5KW/250m3/h | Including non-return valve and filter |
Driving System | Servo | Delta servo/Stepper servo |
Operation System | Syntec 6MB |
|
Pneumatic drill | 5V/7V/9V/7V2H/9V3H1S/9V2H2S | FAM |

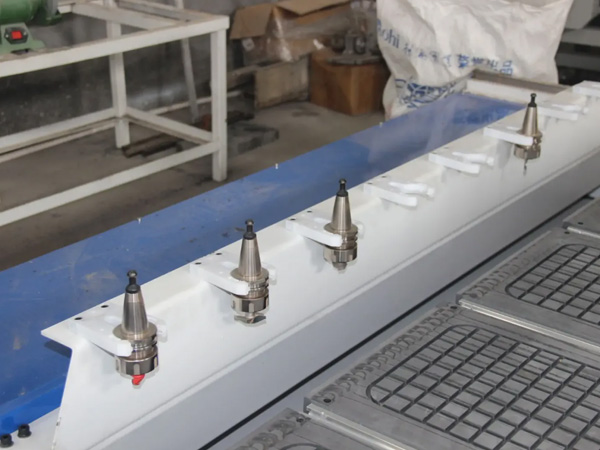

Tool magazine | Linear plastic steel 12 tools |
|
Protection Device | Protection fence/safe carpet/laser light curtain |
|
Rotary Device | 4th axis for 3D carving |
|
Accessories:
|
|
|
Dust collector |
Air vacuum pump |
Mist cooling set(For metal) |
Sample Show:
|
|
|
