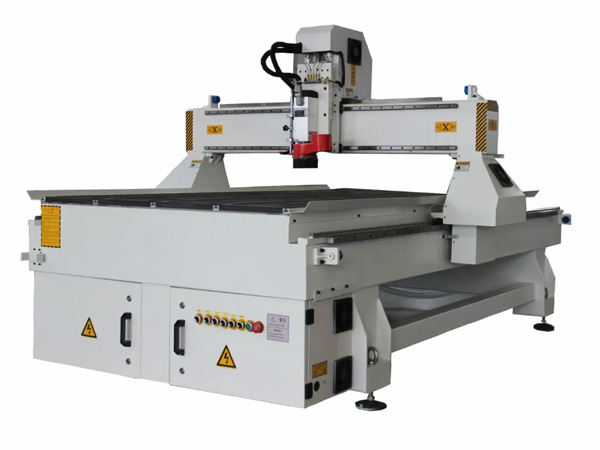

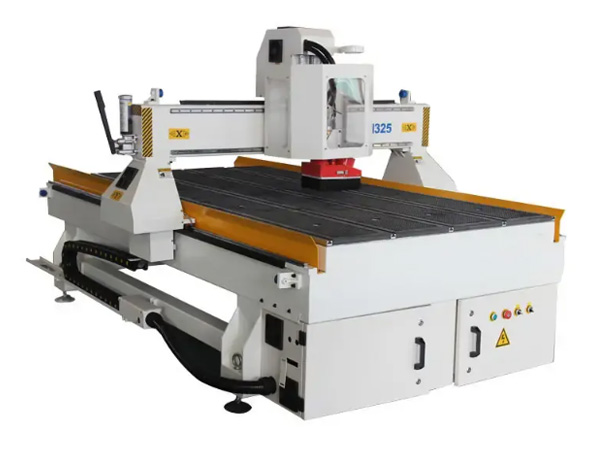

3 Axis CNC Router ST1325A Integrated control cabinet

3 Axis CNC Router used for engraving and cutting for many kinds of material, such as wood, MDF, composites, aluminium, plastics, and foams etc.
Machine Features:

・Industrial control system , easy one button operation , high efficient. It can compatible with Type3 , Artcam , Alphacam , ARTCUT , JD Paint etc
・High hardness table with PVC engineering-plastics,(Vacuum worktable with T slot or PVC with T slot)

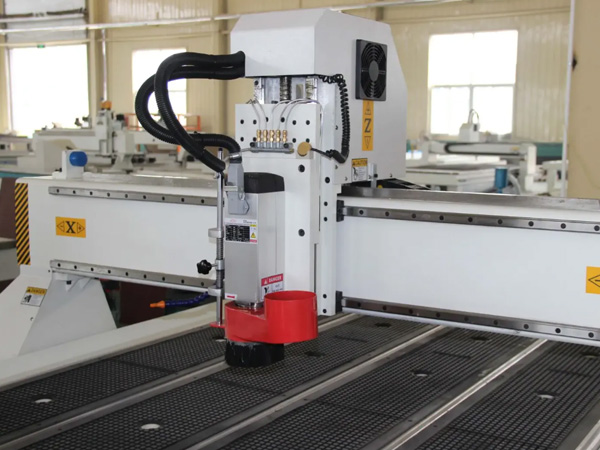

・Our electric spindle adopt High-speed bearing technology , With high Rotational speed , Low noise large power , Fast response Dynamic performance and stability . To meet the high speed work .
・Low voltage electrical components is the top brand of the international and inland,for example, ABB, Honeywell, Omron, AMC, CHNT,DELIXI.

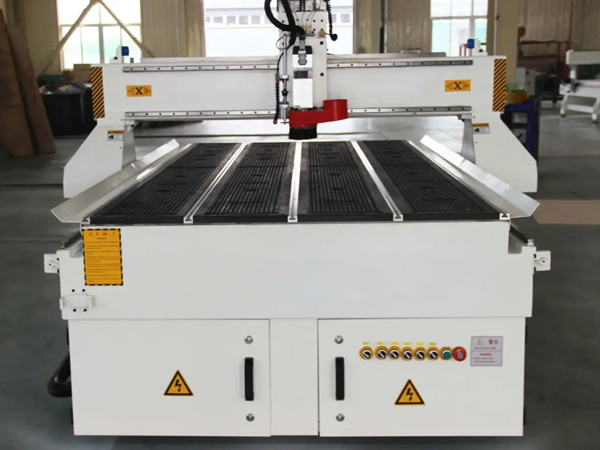

・Electric cabinet and Machine body integral design,more save space.


・Wood: can process cabinet , wood door , solid wood , plate-type , windows , table , chairs , etc
・Decoration: screen,wave plate,huge-scale hanging,advertisement plates,markings making;
・Arts: can engrave on man-made stone, wood, bamboo, marble, acrylic, double-colored board beautiful drawings and letters.

Technical Parameters:

Model ST1325A
working area 1300x2500x200mm Option:1500x3000x200mm;2000x3000x200mm(Customized)
Spindle power 3.5kw China air cooling (Option:4.5kw,5.5kw water or air; HSD)
Drive system Stepper motor(Option: Panasonic, Yaskawa,Delta servo motor and driver)
Guide HIWIN/PMI(Taiwan)
Control system DSP A11(Option:NC studio,mach 3,etc)
Max Running speed 30000mm/min
Max working speed 15000mm/min
Working accuracy ±0.05mm
Re-positioning accuracy ±0.02mm
Power supply AC380/3Ph/50HZ(220V/1Ph/50Hz)
G.W. 1200kgs±


Dust collector
Air vacuum pump
Mist cooling set(For metal)
