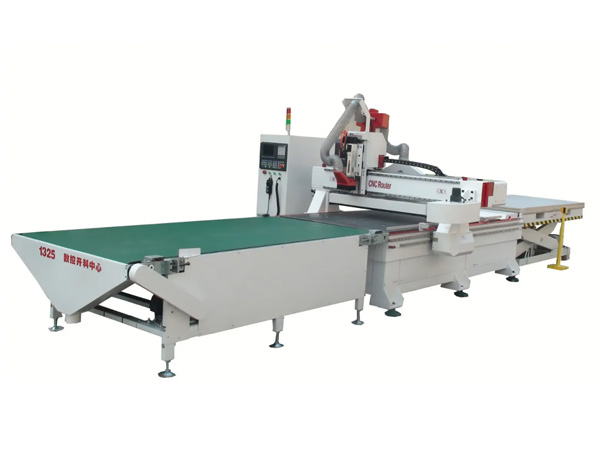

Machine Features：

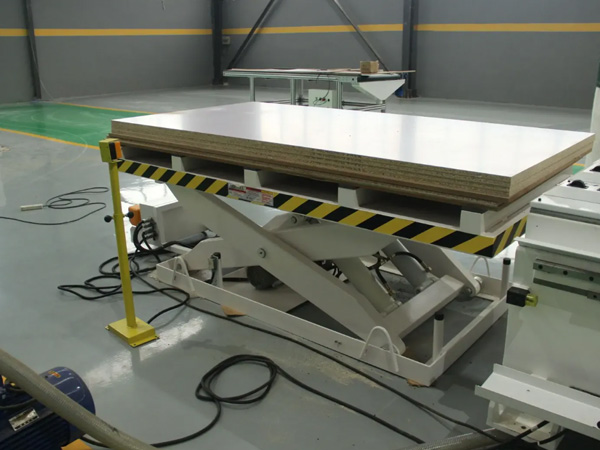

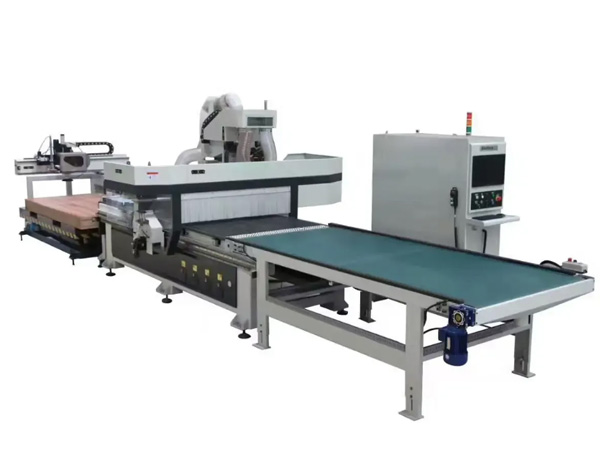

Highly automated nesting solution with automatic loading and unloading system. The complete work cycle of loading, nesting, drilling and unloading is carried out automatically, which results in maximum productivity and zero down time.

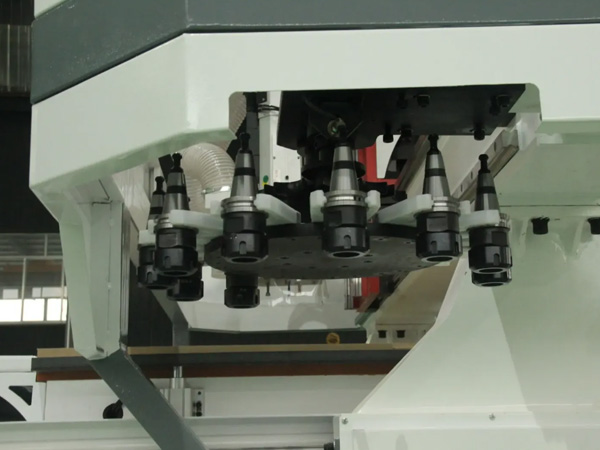

World’s first class components--Italian high-frequency electric spindle, controller system and drill bank, German helical rack and pinion drives, Japanese self-lubricating and dust-proof square linear guides and high precision planetary gear reducers, etc.
Truly versatile--nesting, routeing, vertical drilling and engraving all in one.  It is well-suited for panel furniture, office furniture, cabinets production.

Application:

Wooden door, cabinet, panel furniture, closet, etc. Suitable for standard or bespoke production.

Technical Parameters

Model	ST1325N
Traveling Size	1300*2500*200mm
Transmission	X/Y rack and pinion drive, Z ball screw drive
Traveling Speed	≥45000mm/min
Working Speed	≥25000mm/min
Spindle Power	HSD 9 kw ATC spindle
Spindle Speed	24000r/min
Driving System	Yaskawa
Controller	Syntec

Accessories:

Dust collector	Air vacuum pump	Mist cooling set(For metal)

Sample Show:
