New Design CO2 laser cutting machine STL1325E Venta de precios de costos

Actual: HOME> PRODUCTS> CO2 Laser>

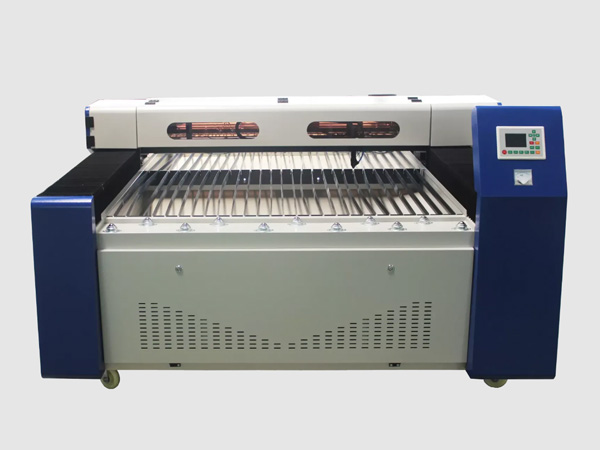

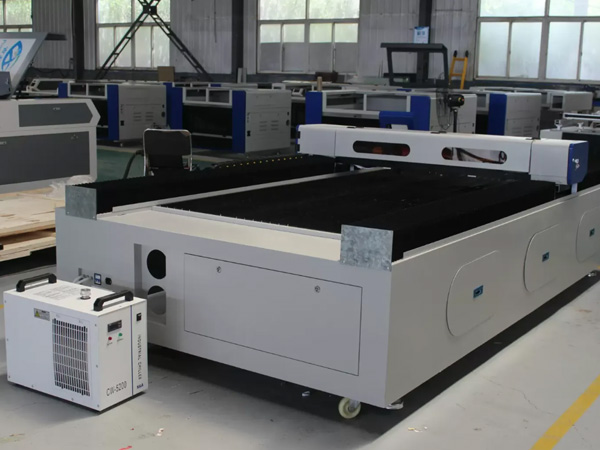

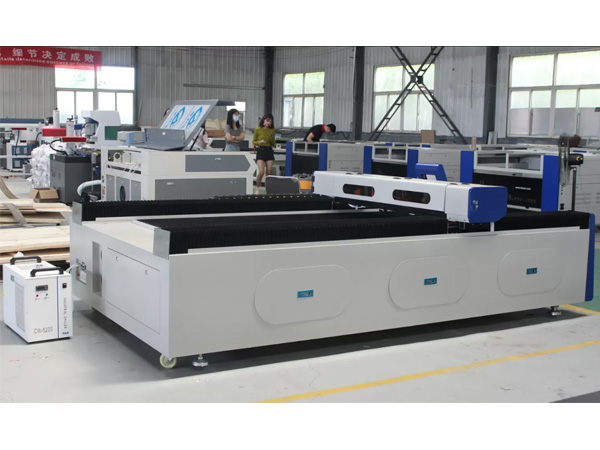

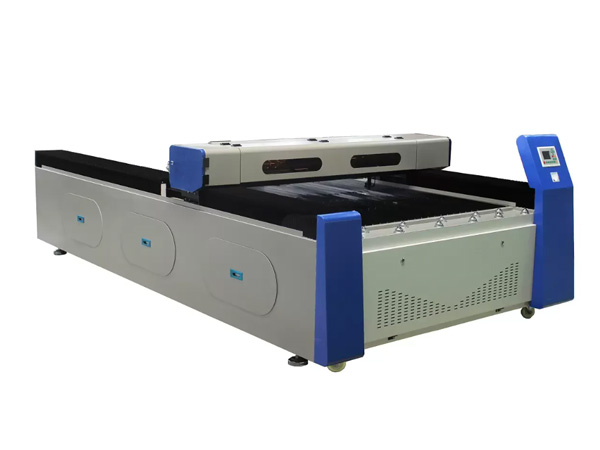

New Design CO2 laser cutting machine STL1325E

Laser cutting machine, working size 1300*2500

GET A QUOTE

SEND AN EMAIL

Details

Machine Features：

・Integrated full steel body, low temperature tempering treatment,reduce the deformation rate;
・Adopt flying ray with spontaneous movement of laser tube and gantry, effectively improve the laser efficiency
・Super large laser processing format, suitable for large scale of mass production;
・Equipped with high power laser tube, it can be a cutting thickness of 30 mm acrylic plate;
・It uses USB put data interface with large mass storage device to provide high working speed and efficiency.
・Support kind of formats:CDR、DXF、PLT 、AI、 BMP、 DST、 JPG and other formats.

Application:

Garment, leather, cloth toys, computer embroidery cutting, mould, crafts, bamboo and wood, advertising and building decoration, packaging and printing, paper and products, etc.
Rubber, plastic, cloth, leather, woollens, crystal, organic glass, tile, jade, bamboo and wooden products, etc.

Technical Parameters

Model	STL1325E
Working Area	1300*2500mm
Laser Power	YONGLI 130W (EFR/RECI)
Laser Type	CO2 Sealed Laser Tube, 10.6μm
Cooling Type	Water Cooling
Engraving Speed	0-60000mm/min
Laser Output Control	0-100% Set by Software
Min. Engraving Size	Chinese: 2.0mm2.0mm; English Letter: 1.0mm1.0mm
Highest Scanning Precision	2500DPI
Locating Accuracy	≤+0.01mm
Controlling Software	Ruida RD Control System 6445G
Graphic Format Supported	DST,PLT,BMP,DXF,DWG,AI,LAS,etc
Compatible Software	TAJIMA,CORELDRAW,PHOTOSHOP,AUTOCAD,All type of AUTOCAD Software in Cloth
Drive System	High-precision Stepper Motor
Auxiliary Equipments	Exhaust Fan and Air Exhaust Pipe
Power Supply	AC110V/220V±10%, 50HZ/60HZ
Working Environment	Temperature: 0-45℃, Humidity5-95%(No Condensate Water)
Option	Rotary Device, Auto-focus Device, CCD Camera, WIFI
