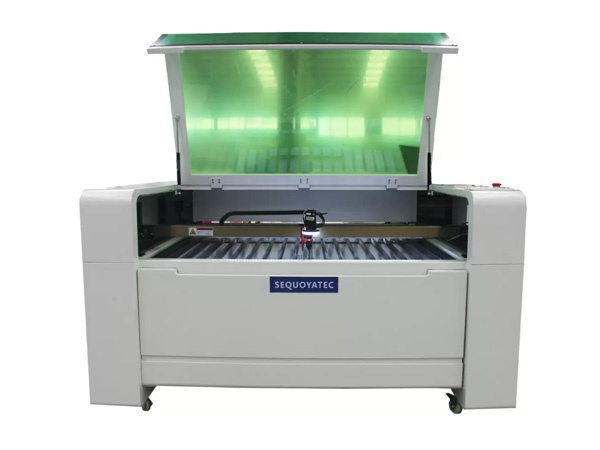

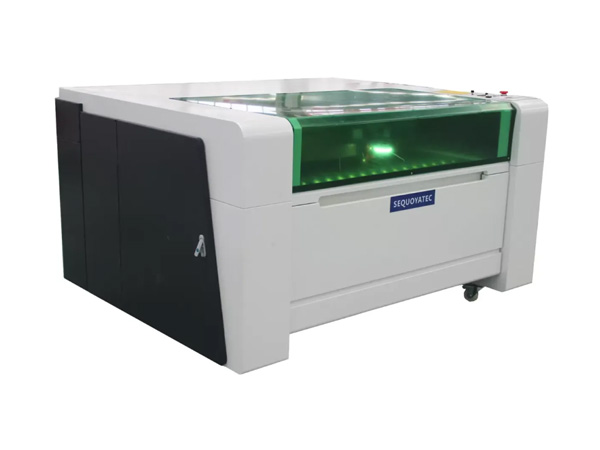

CO2 laser machine with CCD STL1309CCD

This CO2 laser machine with CCD camera, it can scan the edge and then to cut, if you don’t need the CCD, it can work as a normal CO2 laser.
Details
CO2 laser machine 1300x900mm working size.

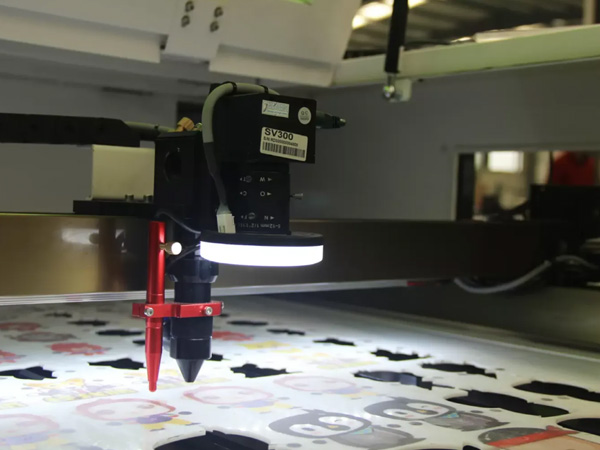

CCD for scan edge and cutting
RECI W6 CO2 laser tube (Options power: W2,W4,W8; Options brand: EFR, Weiju)
Square guide
Blade and Honeycomb worktable
Red dot location

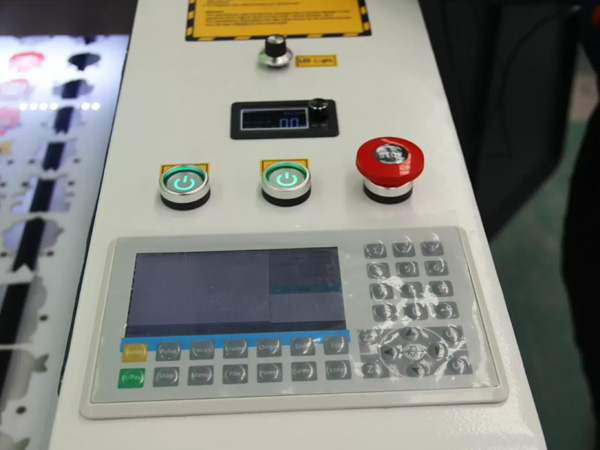

Ruida 634XG control system

Model

STL1309CCD

Working Area

1300*900mm (Option: 600x400mm, 600x900mm,1300x2500mm)

Laser Power

130W

Laser Type

CO2 Sealed Laser Tube, 10.6μm

Cooling Type

Water Cooling

Engraving Speed

0-60000mm/min

Laser Output Control

0-100% Set by Software

Min. Engraving Size

Chinese: 2.0mm*2.0mm; English Letter: 1.0mm*1.0mm

Highest Scanning Precision

2500DPI

Locating Accuracy

≤+0.01mm

Controlling Software

DSP Control System

Graphic Format Supported

DST,PLT,BMP,DXF,DWG,AI,LAS,etc

Compatible Software

TAJIMA,CORELDRAW,PHOTOSHOP,AUTOCAD,All type of AUTOCAD Sofeware in Cloth

Drive System

High-precision Stepper Motor

Auxiliary Equipments

Exhaust Fan and Air Exhaust Pipe

Power Supply

AC110V/220V±10%, 50HZ/60HZ

Working Environment

Temperature: 0-45℃, Humidity5-95%(No Condensate Water)

Option

Up & Down Table, Rotary Device, Auto-focus Device,Lifting table


Standard Accessories:






Air compressor
Water chiller
Exhaust fan
Tool box
CCD




Options





Up-down worktable
Auto focus
Rotary
Wifi
