・Good stability: optimized the Ruida RD6442m system control,it can meet the precision parts processing,stable dynamic performance, also can work for long hours.
・The cutting section with good quality: mechanical follow-up cutting head system, cutting head always fllows the material to keep the cutting point location unchanged, which insures smooth cutting section without processing again. It can adopt to flat or curved surface sheet cutting.
・Adopt sealed co2 laser tube, main consumable items are electric energy, water cooling, auxiliary gas(O2,N2)
300w Laser Cutter
Laser cutting is fast becoming the new way to sample materials such as metal, wood and fabric due to reduced contamination and workpiece retention. Precision has reached new levels in all walks of life, and the waste of raw materials has dropped significantly. If you want to join the group, you can find a 300w laser cutter that matches your space, job and budget.
We have hundreds of products for different materials. You can now easily design and sculpt shapes on your creations. If you're in school, the 300w Laser Cutter will make your job easier, even if etching becomes a hassle. Whether you're working with leather, carbon steel or stainless steel and need a flexible and cost-effective solution, the 300-watt laser cutter range is the perfect place to find a solution. These easy-to-install machines are so simple that all you need is a suitable computer to use.
Do you want cleaner engraving on your material? You can use the 300 watt laser cutter on the website to enter a clear image of the print on the surface. Provide your store with the latest trends and technologies in laser machinery to make your prints stand out. Add variety to your engravings with a color printer with the 300w Laser Cutter. For hard-to-close deals, you'll find a laser marker that fits your needs.
Mix Co2 Laser Cutting Machine
Hybrid cutting CO2 laser cutting machine is a new super technology, mainly used for cutting metal and non-metal materials.
The cutting thickness can reach stainless steel 1-2mm, carbon steel 1-3mm, acrylic and PVC 1-28mm, wood 1-15mm, MDF 10mm.
It is also a good choice for users who need to cut thin metallic materials and thick non-metallic materials.
This CNC laser cutting machine has low investment and low operating and maintenance costs. It allows customers to spend less money for a wider range of material processing.
Main Features of Hybrid CO2 Laser Cutting Machine:
1). Mixed cutting: stainless steel, carbon steel and other metal steel and acrylic, wood and other non-metallic.
2). High precision: The X/Y axis adopts Leadshine servo motor and high precision belt drive, which improves the response speed and cutting accuracy and prolongs the service life.
3). Good stability: Optimize the control of the numerical control system to meet the processing of precision parts, stable dynamic performance, and can work for a long time.

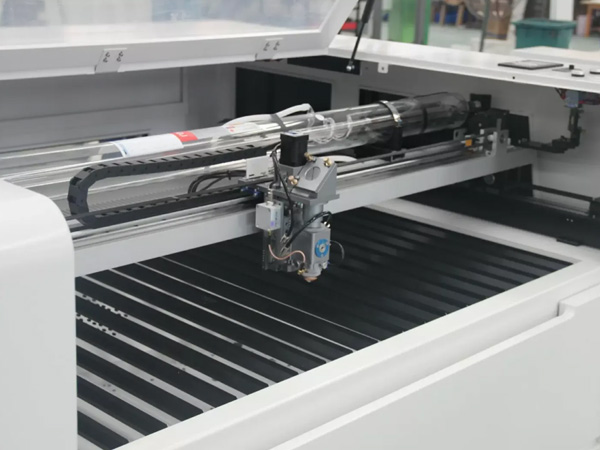

4). High-quality cutting section: mechanical follow-up cutting head system, the cutting head always follows the material, keeps the position of the cutting point unchanged, and ensures that the cutting section is flat and does not need to be processed again. Suitable for flat or curved sheet cutting.
5). The sealed carbon dioxide laser tube is adopted, and the main consumables are electric energy, water cooling, auxiliary gas and laser lamp.
6). The structure is simple, the operation is convenient, the laser device is stable, and the maintenance cost is low.
Application:
Non metal: Acrylic, Plexiglas, Double color plate, Wood, Bamboo, MDF,leather, fabric,Paper, Cardboard, Chipboard, Press Board,Stone, Ceramic, Granite, Marble, Rubber etc
Metal: Carbon steel, Stainless steel(Max to 2mm)
|
Model
|
STL1309AM
|
|
Working area
|
1300x900mm
|
|
Laser power
|
130W/150W/250W/300W/350W
|
|
Resolution Ratio
|
＜0.025
|
|
Positioning accuracy
|
0.1mm
|
|
Min.cutting size
|
(chinese) 1.5mm(english) 0.8mm
|
|
Repositioning accuracy
|
＜0.1mm
|
|
Software support
|
AutoCAD/Type3/Coreldraw,etc
|
|
Power supply
|
220V/1Ph/50Hz/60Hz
|
Standard Accessories:
|
|
|
|
|
Air compressor
|
Water chiller
|
Exhaust fan
|
Tool box
|
Laser head
|
Sample show:
|
|
|
Wood/MDF
|
Acrylic
|
Stainless steel
|
