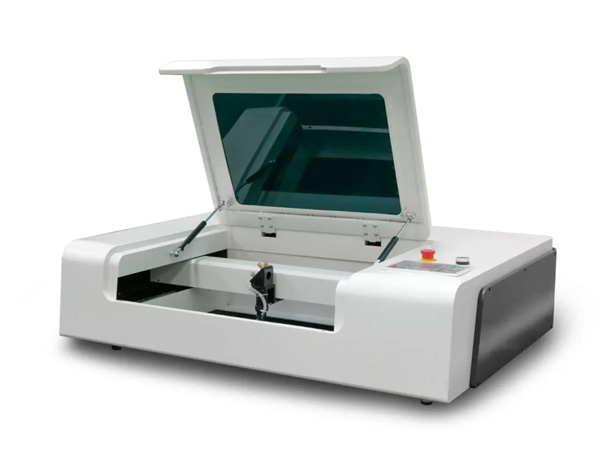

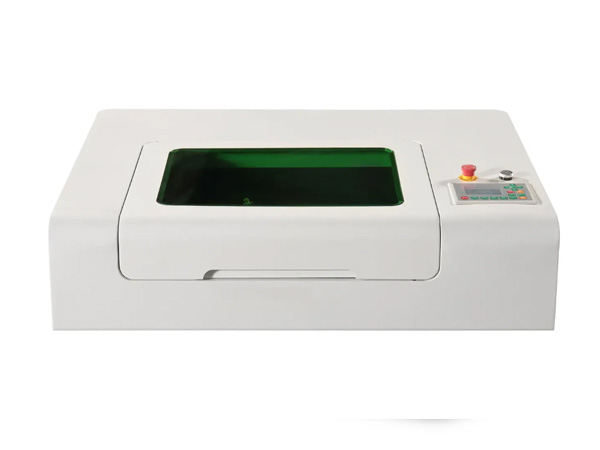

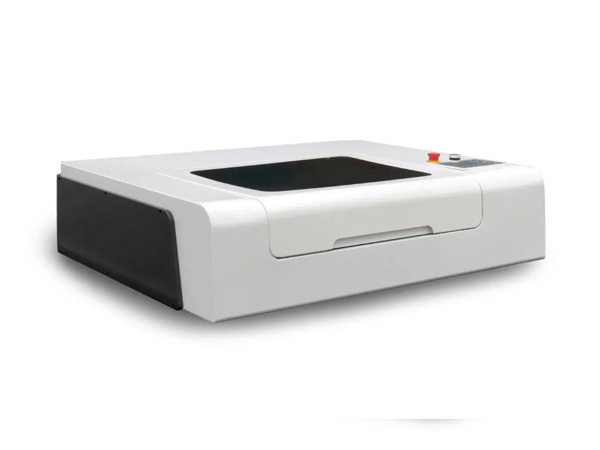

Mini CO2 laser machine STL5030A

STL5030A mini size laser machine mainly used for cutting thin material such as paper, acrylic etc and engraving on non metal material, this machine easy to move, can engraving on stone, marble and other material which not easy to move.
Details
・Mini CO2 laser machine with 500x300mm working size.
・40W CO2 laser tube
・HIWIN/PMI square guide
・Blade and Honeycomb worktable
・Red dot location
・Ruida 6442S control system

Application:

1.In bamboo, crystal, horn, print, organic glass, marble, cloth, leather, rubber, plastic and other non-metallic materials on laser processing.
2. Clothing, embroidery, fabric toys, handbags, gloves, toy industry, leather, leather cutting and surface of carve patterns or designs on woodwork.
3. Arts and crafts, model, advertisement, decoration, electrical appliances, plastic industry, acrylic board, medium density decorating plate etc. Nonmetal sheet precision cutting.

4.Suitable for acrylic,wood planks(light planks,wood),bamboo,double color board,paper,leather,shell,coconut shell,ox horn,resin animal grease,ABS board,lamp shade,etc.

Model STL5030A
Working Area 500*300mm
Laser Power 40W (Options:50W/60W)
Laser Type CO2 Sealed Laser Tube, 10.6μm
Cooling Type Water Cooling
Engraving Speed 0-60000mm/min
Cutting Speed 0-40000mm/min
Laser Output Control (0-100% Set by Software )
Min. Engraving Size Chinese: 2.0mm*2.0mm, English Letter: 1.0mm*1.0mm
Highest Scanning Precision 4000DPI
Locating Precision ≤+0.01mm
Controlling Software Ruida Control System
Graphic Format Supported DST PLT BMP DXF DWG AI LAS,etc
Compatible Software TAJIMA,CORELDRAW,PHOTOSHOP,AUTOCAD,etc
Drive System High-precision 3-phase Stepper Motor
Auxiliary Equipment Exhaust Fan and Air Exhaust Pipe
power Supply AC110V/220V±10%,50HZ/60HZ
Working Environment Temperature:0-45℃,Humidity 5-95%(No Condensate Water)
Optional Spare Parts Honeycomb Worktable, Rotary Device,Auto-focus Device

Standard Accessories:





Air compressor
Water chiller
Exhaust fan
Tool box

Tool box





Acrylic/Rubber
Paper/ABS
Rubber
Marble
