・Ruida 634XG control system
|
Model |
STL1309CCD |
|
Working Area |
1300*900mm (Option: 600x400mm, 600x900mm,1300x2500mm) |
|
Laser Power |
130W |
|
Laser Type |
CO2 Sealed Laser Tube, 10.6μm |
|
Cooling Type |
Water Cooling |
|
Engraving Speed |
0-60000mm/min |
|
Laser Output Control |
0-100% Set by Software |
|
Min. Engraving Size |
Chinese: 2.0mm*2.0mm; English Letter: 1.0mm*1.0mm |
|
Highest Scanning Precision |
2500DPI |
|
Locating Accuracy |
≤+0.01mm |
|
Controlling Software |
DSP Control System |
|
Graphic Format Supported |
DST,PLT,BMP,DXF,DWG,AI,LAS,etc |
|
Compatible Software |
TAJIMA,CORELDRAW,PHOTOSHOP,AUTOCAD,All type of AUTOCAD Sofeware in Cloth |
|
Drive System |
High-precision Stepper Motor |
|
Auxiliary Equipments |
Exhaust Fan and Air Exhaust Pipe |
|
Power Supply |
AC110V/220V±10%, 50HZ/60HZ |
|
Working Environment |
Temperature: 0-45℃, Humidity5-95%(No Condensate Water) |
|
Option |
Up & Down Table, Rotary Device, Auto-focus Device,Lifting table |
Standard Accessories:
 |
 |
 |
 |
|
Air compressor |
Water chiller |
Exhaust fan(Double) |
Tool box |
Options:
 |
 |
 |
 |
|
Up-down worktable |
Auto focus |
Rotary |
Wifi |
Sample show:
 |
 |
 |
 |
|
Wood/MDF |

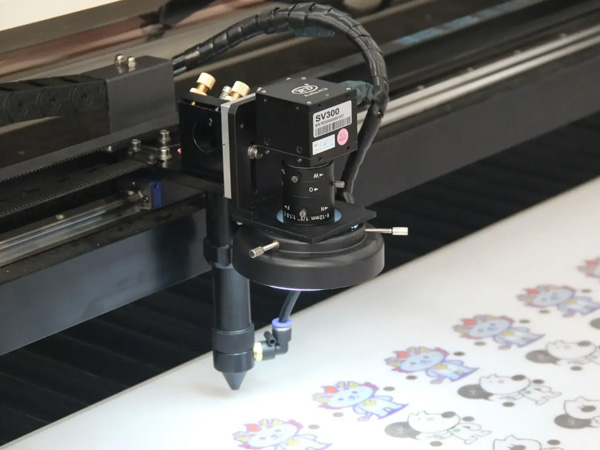

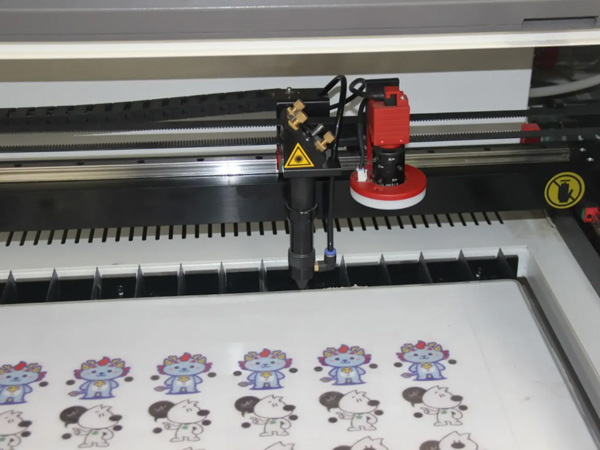

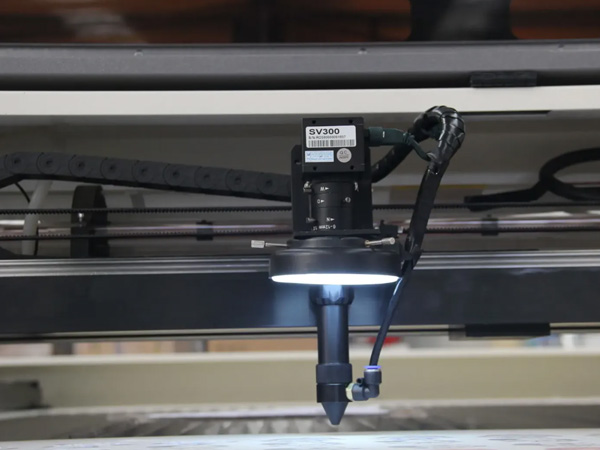

CCD Cut |
Fabric/Leather/PU |
Paper/ABS |
