300W metal and non metal CO2 laser cutting machine STL1325AM

Mixed-cut: metal see such as stainless steel, carbon steel, and nonmetal such as anyia,, wod.e.c High precision: XY axis adopt Leadshine servo motor within precision belt transmission improve the response speed and cutting precision,extend the time of using.
Details
Good stability: optimized the nc system control,it can meet the precision parts processing,stable dynamic performance, also can work for long hours.

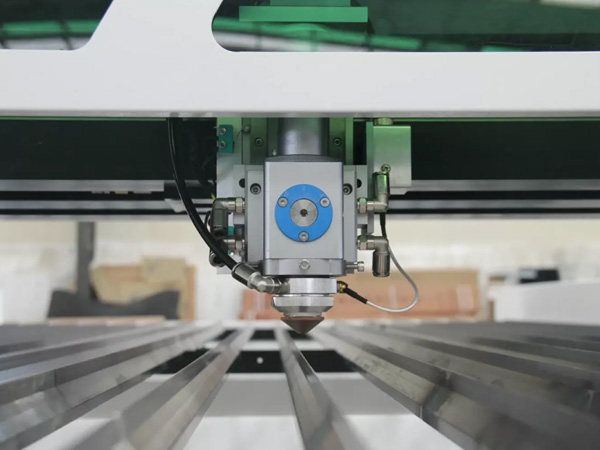

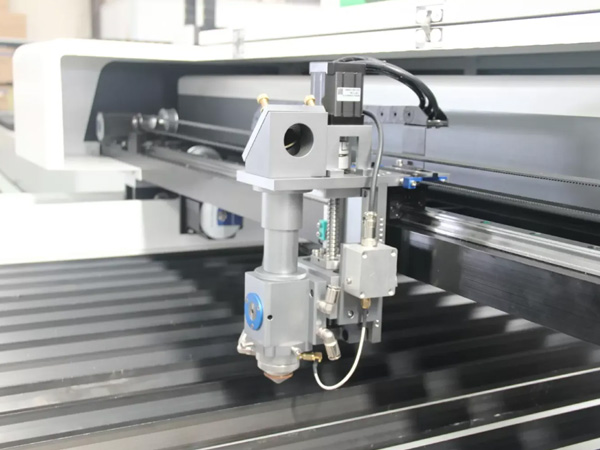

The cutting section with good quality: mechanical follow-up cutting head system, cutting head always fllows thematerial to keep the cutting point location unchanged, which insures smooth cutting section without processing again. It can adopt to flat or curved surface sheet cutting.
Adopt sealed co2 laser tube, main consumable items are electric energy, water cooling,  auxiliary gas(O2,N2)

Application:

Non metal: Acrylic, Plexiglas, Double color plate, Wood, Bamboo, MDF,leather, fabric,Paper, Cardboard, Chipboard, Press Board,Stone, Ceramic, Granite, Marble, Rubber etc

Metal: Carbon steel, Stainless steel(Max to 2mm)

Model

STL1325AM

Working area

1300x2500mm/1300x900mm

Laser power

130W/150W/230W/280W

Resolution Ratio

<0.025

Positioning accuracy

0.1mm

Min.cutting size

(chinese) 1.5mm(english) 0.8mm

Repositioning accuracy

<0.1mm

Software support

AutoCAD/Type3/Coreldraw,etc

Power supply

220V/1Ph/50Hz/60Hz

Standard Accessories:






Air compressor
Water chiller
Exhaust fan
Tool box
Laser head

Sample show:




Wood/MDF
Acrylic
Stainless steel
