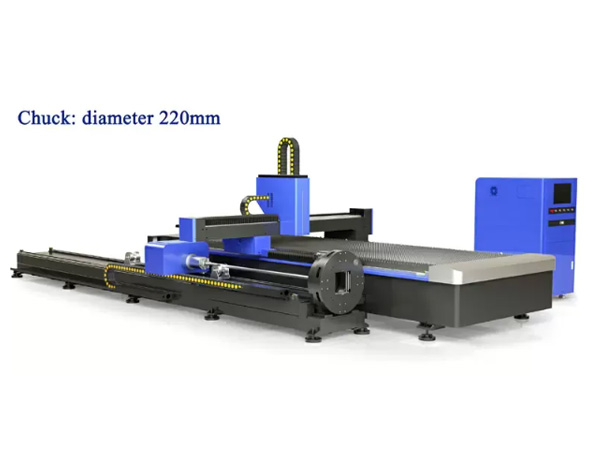

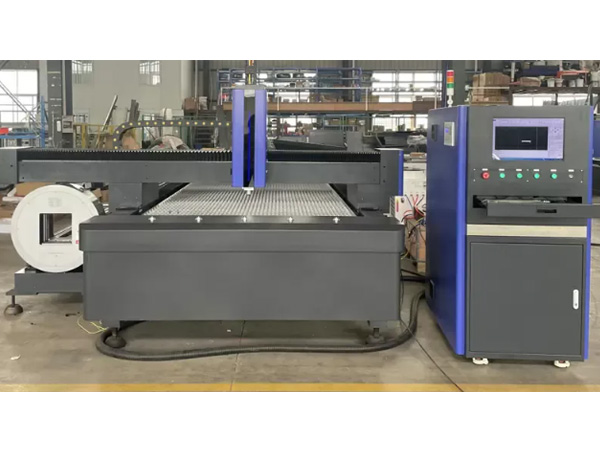

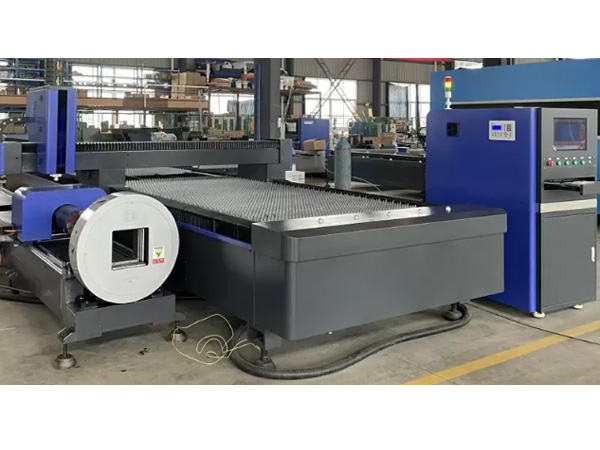

QF1530-G Plate and tube fiber laser cutting machine

Specialized in cutting square tubes, round tubes, rectangular tubes, D-shaped tubes and hexagonal tubes, etc.
Details
Specialized in cutting square tubes, round tubes, rectangular tubes, D-shaped tubes and hexagonal tubes, etc.
Automatic deviation correction function, find the pipe center, intelligent, convenient and practical.
Fully automatic centering power chuck: ensure the flatness and feeding accuracy of long pipes when they are clamped and tightened.

Fully automatic centering power chuck: ensure the flatness and feeding accuracy of long pipes when they are clamped.


QF1530-G Plate and tube fiber laser cutting machine
◆ Specialized in cutting square tubes, round tubes, rectangular tubes, D-shaped tubes and hexagonal tubes, etc.
◆ Automatic deviation correction function, find the pipe center, intelligent, convenient and practical.
◆ Fully automatic centering power chuck: ensure the flatness and feeding accuracy of long pipes when they are clamped and tightened.
◆ Fully automatic centering power chuck: ensure the flatness and feeding accuracy of long pipes when they are clamped.


Technical Parameters

Laser Power 1000-6000w

The laser wavelength

1070nm±10nm
Min.Line Width 0.1mm
Repeat position accuracy ±0.05mm
Cutting range 1500x3000mm
Cutting thickness 6-25mm
Aimed and positioning Red light
Power supply 380V/50HZ
Cooling mode Water cooled
N.W. ≥5000Kg

Application field

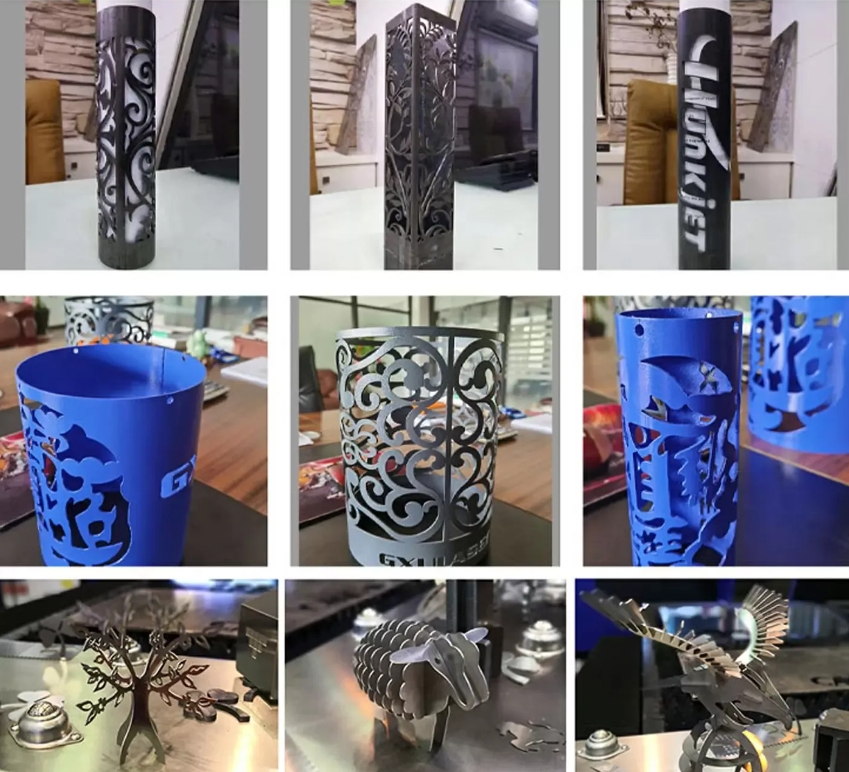

Widely used in dry gold processing, medical equipment, sports equipment industry, lighting industry decoration industry, furniture industry, kitchen utensils and bathroom industry

Six core hardware

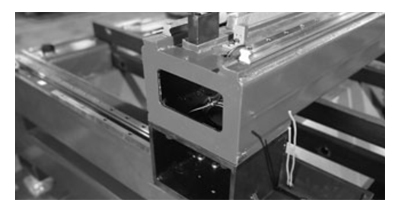

Machine Bed + beam mobile gantry structure
Integral casting
The equipment has high precision, good rigidity, and stable operation. (Optional: automatic exchange table, the equipment can be loaded and unloaded while processing, which is convenient, fast and time-saving)

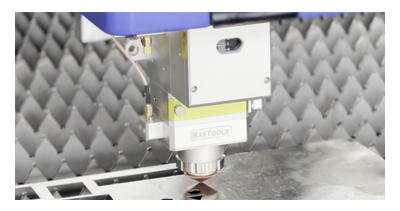

Wanshunxing/Weihong/Raytool cutting head fiber laser cutting head
Equipped with optical fiber dedicated laser cutting head and capacitive non-contact automatic tracking system, which can automatically adjust the focal length to ensure the cutting effect of the whole board

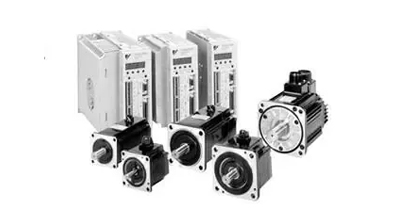

Servo motor imported from Japan/Taiwan
Stronger torque, faster and smoother operation

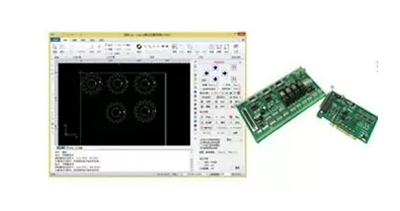

Cypcut/NC stuido controller system
Stable operation and strong compatibility
Using Cypcut CNC system, its control has the characteristics of stronger stability and better compatibility, so as to ensure the accuracy of the machine tool under high-speed motion
Max/Raycus/IPG fiber laser
High electro-optic efficiency, long working life, stable light source
