Machine Features:
・With OSAI numerical control system, HIWIN square guide, Yasakawa servo motor and driver, HSD spindle,the machine is of high speed and high machining accuracy;
・Zaxis travel can be heightened to 1.2 meters, so it is very suitable for processing large- scale three dimensional surface, special for cars model.

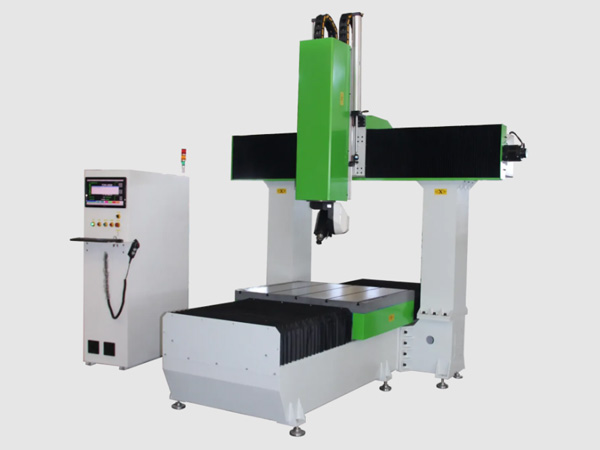

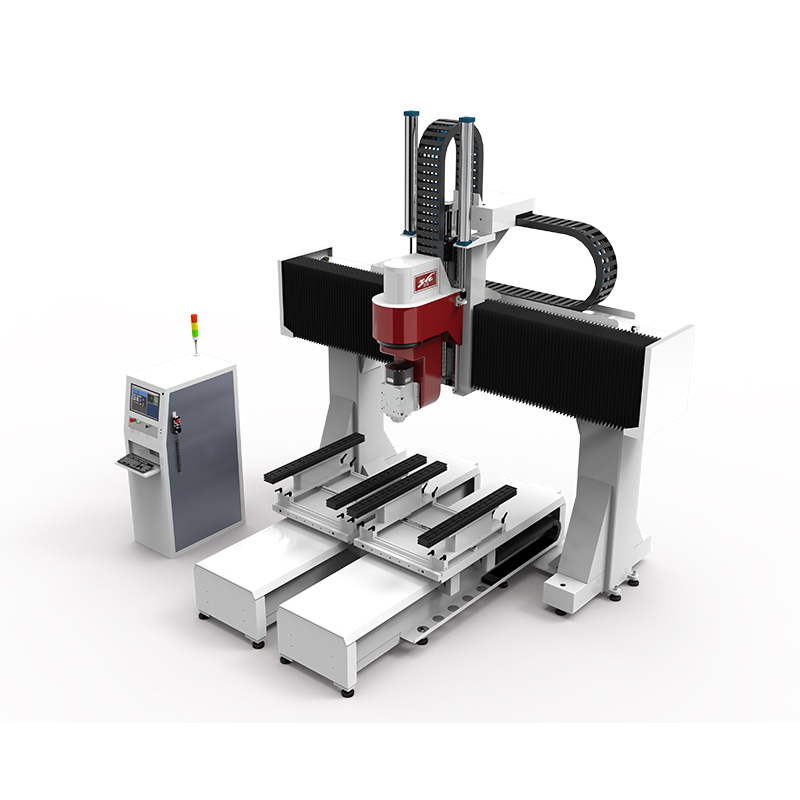

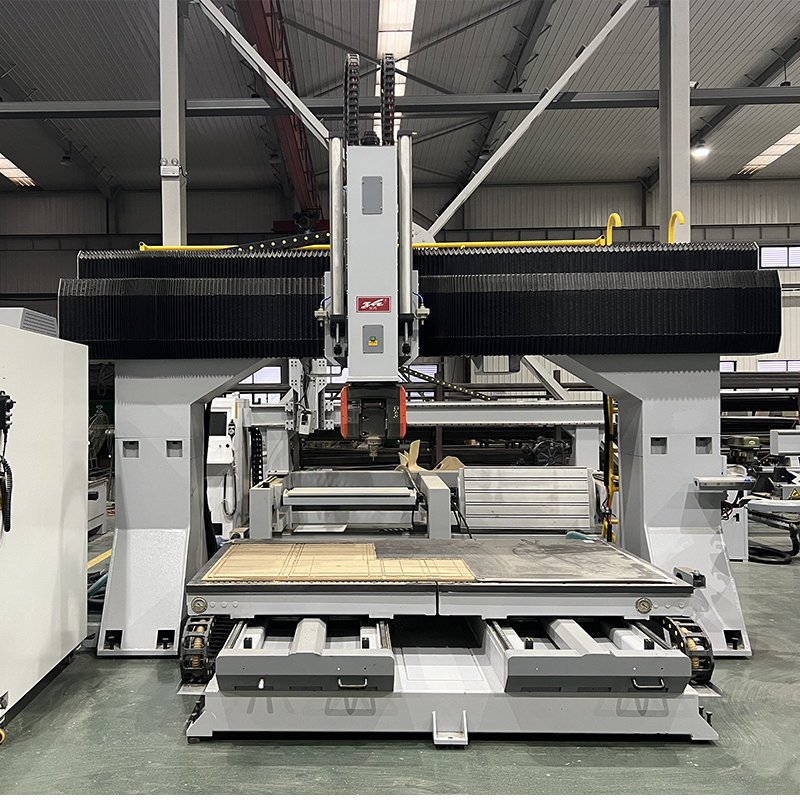

5 Axis CNC Router
First, there are many CNC routers. These larger wood forming stations are suitable for industrial settings and generally have the most versatile cutting systems. They can be programmed and automated for mass production - handy when producing furniture, frames or toys. Simpler routers include drop-in routers for creating grooves and grooves, fixed base routers for edge molding, and standard routers for general wood molding. Routers tend to range from heavy to very light, and many workshops prefer to keep a variety of stock in stock for every situation.
5-Axis CNC routers are designed to increase precision, speed and versatility in your production process. Manufactured with state-of-the-art components and innovative technologies, these 5-Axis CNC routers are suitable for virtually any industrial production process.
Each 5-axis CNC router features five fully synchronized axes to meet even the most demanding production requirements, from milling to milling. Choose from dual mobile workstations for increased productivity or a single fixed workstation to free up floor space. These machines can easily handle large workloads, including large volumes of wood, plastic, aluminum and corrugated materials. In addition, these machines are ideal for manufacturing marine and automotive parts as well as trimming molded products on curved 3D surfaces. No matter which model you choose, these 5-axis CNC machines will impress every time.
Application:
・Various large metalloid moulds, especially suitable for automotive foammold, wooden ship model, aviation wooden mold, rail wooden mold and train wooden mold.
・3D surface engraving and shape cutting of large- scale instruments.
・Wood ,EPS,resin,plaster,other non-metal carbon mixed compound,stone artficial stone, graphite, PVC, etc.
Our team of trained professionals can assist you with operator training, technical guidance and on-site support. Contact us today for more information.
Technical Parameters
Model
|
ST1530-5A
|
Traveling Size
|
3000*1500*500mm
|
Transmission
|
X/Y rack and pinion drive, Z ball screw drive
|
Traveling Speed
|
≥45000mm/min
|
Working Speed
|
≥20000mm/min
|
Spindle Power
|
HSD 9 kw ATC spindle
|
A/C Axis(Rotation axis of XYZ)
|
±270°
|
Spindle Speed
|
24000r/min
|
Driving System
|
Yaskawa
|

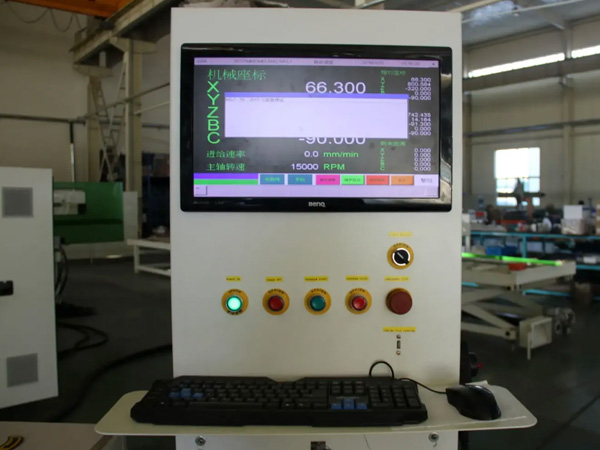

Controller
|
Syntec/Osai
|
Accessories:

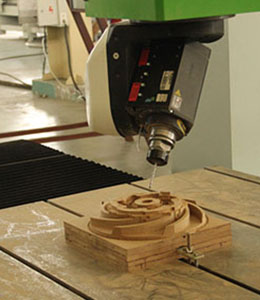

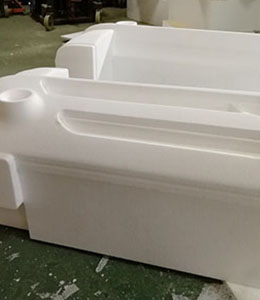

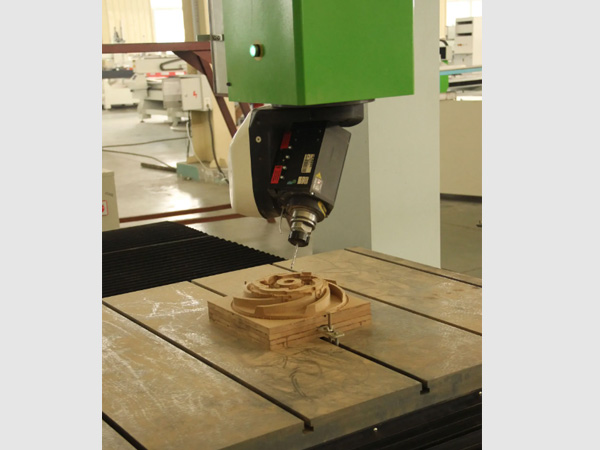

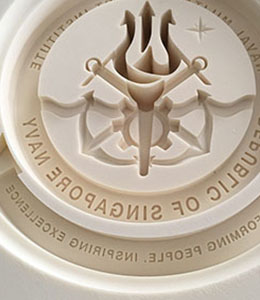

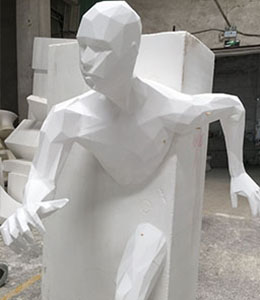

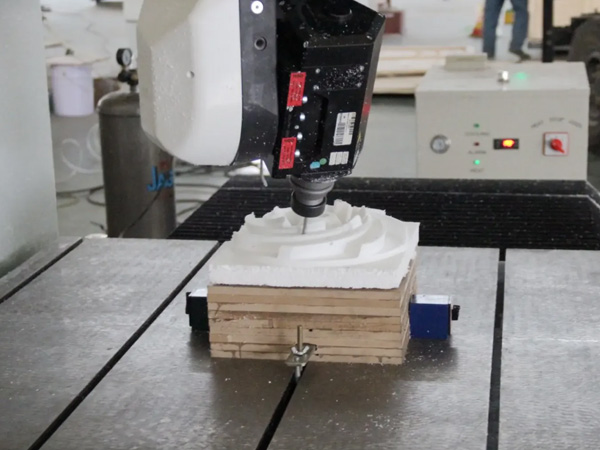

Sample show:
