How to choose a suitable CNC Router for your business?

With the development of science and technology, CNC router is widely used in wood, stone, MDF, acrylic and plastic etc. CNC router improved the work efficiency, saved the human cost of business, then, how to buy a suitable CNC router?

First let’s find your answer to the following two questions:

1. What kind of material do you plan to engrave?
The reason this should be the first question you ask is because it can quickly let you know if this type of CNC router is suitable. CNC routers are usually associated with carpentry, which is why CNC routers are usually associated with woodworking only. However, there are many other materials that can be engrave.

So, if your answer to question one was any of the following:

Wood
MDF
Plastic
Foam
Acrylic

Aluminum

Then it is safe to assume that a CNC router could still be the machine for you. So lets continue to the second question.

2. What is the most complex design you foresee engraving?

The complexity of the design is another important considerations. What is meant by this is primarily the overall size and depth of cut per axis. Do you plan to use the CNC router for engraving, carving, drilling, or all of the above?

The versatility of this machine is one of it primary appeals. However, with its ability to engrave, carve, and drill there are drawbacks, such as speed. Now for the most part, this is not an issue. In most applications CNC Routers are quite fast and probably the fastest machine for the work.

However, if you are planning on only using this machine for cutting 2-D metal plate for example, a CNC water jet or CNC plasma machine would probably be more efficient.

If you have decided that the CNC router is still a viable choice then I suggest you refer to the following key points:

1. Motor System: Servo Motors are best for high speed, high torque applications involving continuous load changes while Stepper Motors are less expensive and best for low-medium speed, high torque applications. Should choose depends on your need and budget.

2. Drive System: There are typically 3 types of drive systems on a router including Rack and Pinion, Lead Screw, and Ballscrew. Ballscrew is the most expensive but also withstands larger material size and yields better accuracy.

3. Automatic Tool Changer System (ATC): If your application requires using more than one tool, then an ATC System would help to change tools efficiently, reduce operator error and decrease job times.

4. Spindle: Spindles are motors that do the actual cutting with the use of a cutting tool. Look at the capabilities of the spindle including RPM, torque, power requirements, load ratings, collet type and size, spindle motor type, etc.

5. Weight: The heavier the machine, the better it is constructed, the better it performs. However, if your business requires frequent transportation of the machine, you may want to look around for a strong and rigid machine that weighs the least.

6. Table size: Buy a large enough routing machine that can handle your typical material size while considering room for expansion or jobs that require longer material to be processed.

7. CNC router software: Knowing the machine does what it is programmed to do, invest in advanced software that provides accuracy, efficiency, regular updates, etc.

8. Features: Look for Router systems that offer a variety of features. Simply put, machine features essentially make things easier for you. You want a machine that is productive, can process efficiently and requires little to no supervision once the settings are in place.

9. CNC router bits: Purchase quality router bits with a long life. Once purchased, make sure you maintain and care for them as it is important to always work with a sharp router bit.

10. Vacuum: The more hold down strength, the heavier material you can cut. Look at how much vacuum pressure the machine has and how well the table holds down material.

11. Dust Collection: CNC Routers can generate a lot of sawdust. Vacuum Systems can clean up the atmosphere and the overall area of operation. Check to see approximately how much dust will be created, what type and weight of waste needs to be collected, and where should you place the vacuum system so it works most effectively.

How and where to buy CNC Router with Affordable Price?

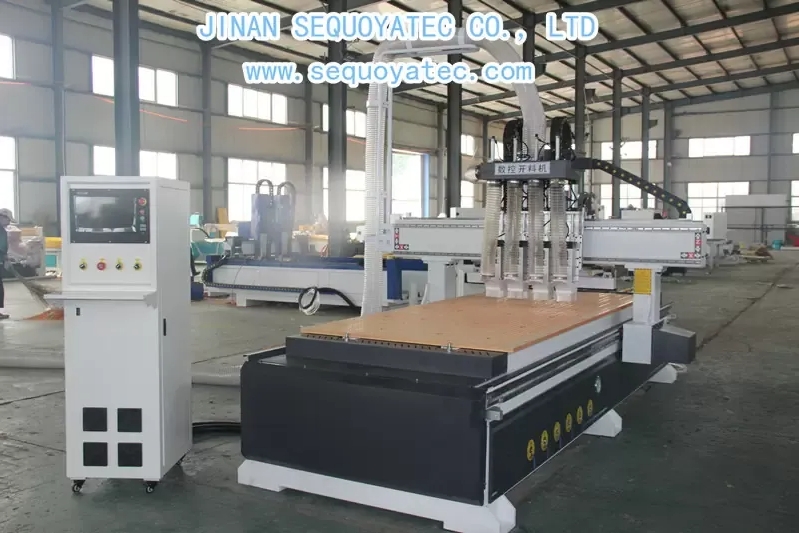

The cost of a CNC Router depends on the model, features, options, size, construction, and more. JINAN SEQUOYATEC Co., LTD. manufactures and supplies CNC Router from entry level to high-end Routers which cost approximately from $4k to 150k, including 3 axis, multi-axis, and accept OEM orders.

For more information, please visit www.sequoyatec.com or contact:

Email: info@sequoyatec.com
Wechat/Whatsapp:+86 13539465576
Tel:+86-0531-88618510
