Mini CNC Router ST6090D Venta de precios de costos
Actual: HOME> PRODUCTS> CNC Router>

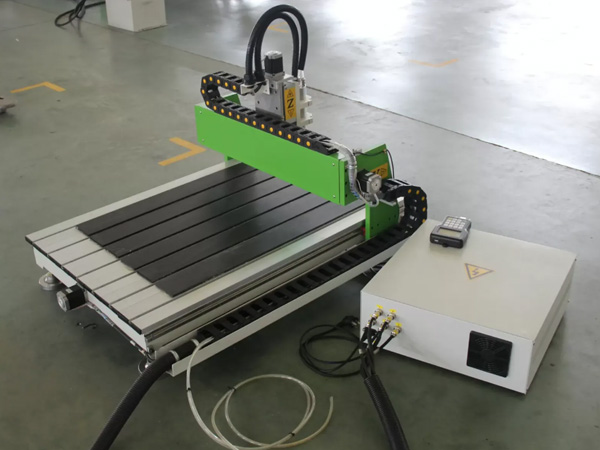

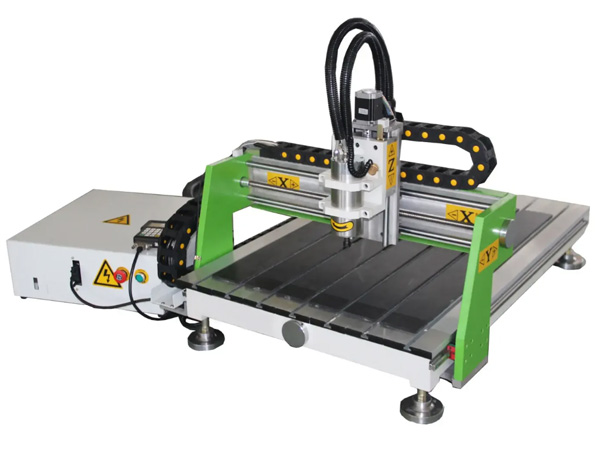

Mini CNC Router ST6090D

Mini Desktop CNC Router with 4th axis rotary is used for 2D/3D works in advertising industry, arts, crafts, signs, gifts and CNC mold making.
Details
Machine Features:

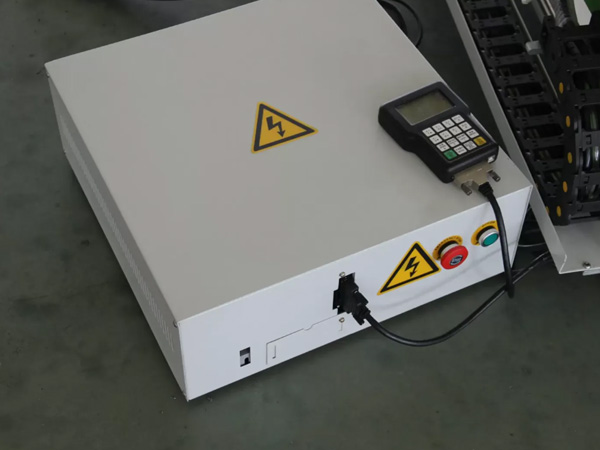

Advanced Control System Mach3 or Advanced DSP numerical control system.
Large Memory and Perfect Data Transmission Large internal memory of 128M is enough to simultaneously store more than 30 processing files which can be read freely.

Application:

Arts: can engrave on man-made stone, wood, aluminum, MDF, bamboo, marble, acrylic, double-colored
board beautiful drawings and letters.

Technical Parameters:


Model ST6090D
X,Y Working area 600mmx900x100mm
Z height 100mm
Max traveling speed >50m/min
Reposition precision 0.05mm
Table structure T slot
Command G code
X,Y,Z structure X Y Z ball screw
Compatible software Ucancam,Artcam,Castmate,Coreldraw
Power(spindle is not included) 1.5KW
Work voltage 220V/1Ph/50Hz

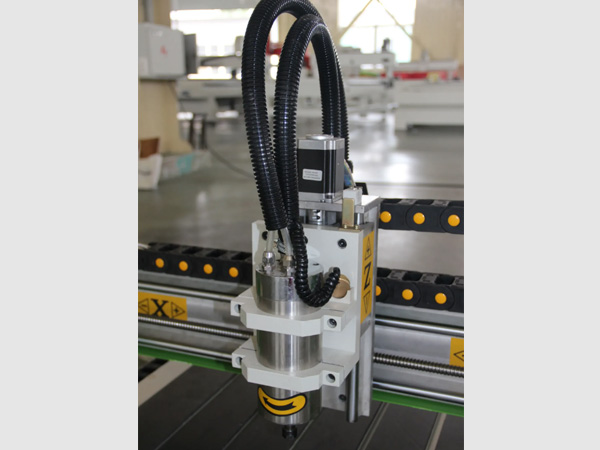

Spindle power 1.5KW water/air cooling(depends on your need)
Spindle rotating speed 0-24000rpm/min
Drive motor Stepper


Accessories:




Dust collector
Mist cooling set(For metal)

Sample Show:
