Plasma cutting is a process where SPP uses a plasma torch to cut stainless steel and other metals of different thicknesses. In this process, inert gas (compressed air in some devices) is blown out of the nozzle at high speed; at the same time, an arc is formed by the gas from the nozzle to the cut surface, converting some of the gas into plasma. The plasma melts the cut metal and blows the molten metal away from the cut.
Using Plasma Sheet Metal Cutting Machine, companies can greatly improve their capabilities to provide their customers and consumers with high-quality, high-end results. Plasma metal cutting machines are known for their accuracy, efficiency and versatility, and are an effective solution for manufacturing companies of all sizes and scopes.
With its advantages of low investment and low operating cost, CNC plasma cutting machine is suitable for production line and automation, improves the precise cutting quality, and continues to provide a wide range of flexible solutions. The plasma metal cutting machine will become the profit center of your workshop because it has the lowest maintenance and consumable costs and will not lose accuracy for many years.
Machine Features:
Machine frame with high rigidity, after secondary aging fully eliminate internal stresses. Ensure machine accuracy is stable and cutting precision .
It adopts stepping motor and planetary reducer. SBR linear guides ensure the cutting speed and operation of the whole machine.
Adopt gantry structure, gear transmission, stable cutting.
Use professional CNC cutting software, easy to learn and use greatly improve work efficiency.

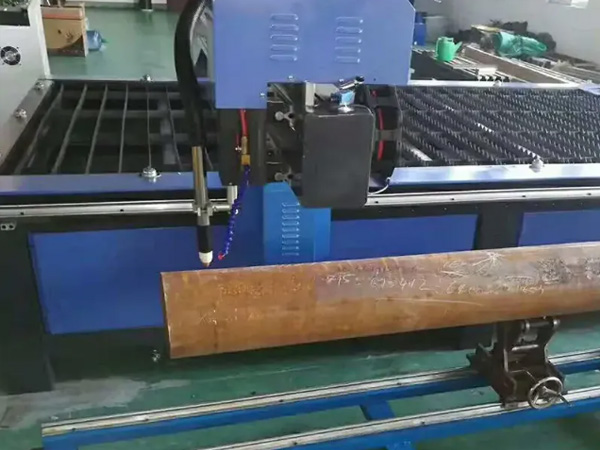

Rotary device for tube material, diameter customized
Application:
Sheet metal processing, machinery, automotive, shipbuilding, tool processing, petroleum machinery, video machinery, environmental protection equipment, advertising, metal external processing and other processing and manufacturing industries
As a professional plasma cutting machine manufacturer, Sequoyatec understands your needs and can meet your most stringent plasma metal cutting machine requirements. Sequoyatec provides the most reasonable prices for CNC plasma cutting machines.
Technical Parameters
Model | ST1530P |
Working area | 1500X3000mm/4000mm |
Rotary diameter | 200mm(customized) |
Movement accuracy | 0.01mm/step |
Moving speed | 12000mm/min |
Driver | Stepper motor+Leadshine driver(Gantry moveable) |
Control system | STARFIRE, STATAI, ShanghaiFangling |
Plasma power supply brand | HUAYUAN/Hypertherm |
Plasma power | 63A,100A,120A,160A,200A,300A,400A |
Voltage | 380V/3Ph/50Hz |
Machine size | 3500x4500x1810mm(About) |
