Machine frame with high rigidity, after secondary aging fully eliminate internal stresses. Ensure machine accuracy is stable and cutting precision .
It adopts stepping motor and planetary reducer. SBR linear guides ensure the cutting speed and operation of the whole machine.

Machine Features:

Machine frame with high rigidity, after secondary aging fully eliminate internal stresses. Ensure machine  accuracy is stable and cutting precision .
It adopts stepping motor and planetary reducer. SBR linear guides ensure the cutting speed and operation of the whole machine.

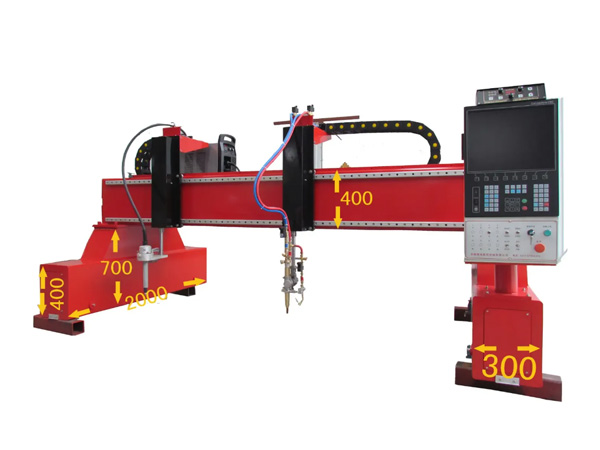

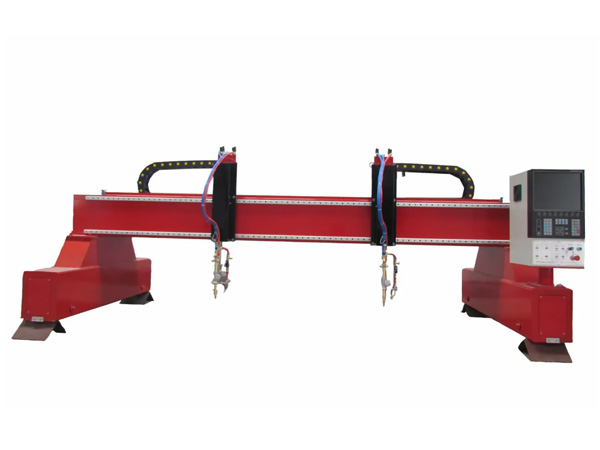

Adopt gantry structure, gear transmission, stable cutting.
Use professional CNC cutting software, easy to learn and use greatly improve work efficiency.

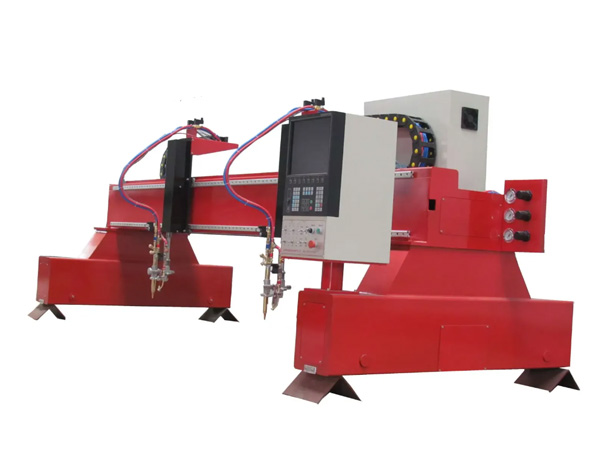

Flame and Plasma double head cutting mode.

Application:

Sheet metal processing, machinery, automotive, shipbuilding, tool processing, petroleum machinery, video machinery, environmental protection equipment, advertising, metal external processing and other processing and manufacturing industries

Technical Parameters:

Working size	2000x7000mm(machine size customized)
Cutting thickness	0.8-38MM(CS)(Plasma)8.0-180.0mm (Flame)
CNC Cutting torch	1 pc
Up-down range	200mm
Max speed	12000mm/min
Working accuracy	±0.3mm
Flatness error of main and auxiliary rail	±2mm
Repeat accuracy	±0.3mm
Intersection offset	Straightness of rail Said straightness of main rail:≤±0.2mm/10000mm Said straightness of auxiliary rail:≤±0.3mm/10000mm Parallelism of longitudinal rail surface and level of the main rail and  auxiliary rail: ≤±0.2mm/1000mm Test pattern: 1000mm×1000mm
Straightness	≤±0.5mm
Roundness	≤±0.4mm
Repeat positioning accuracy	≤±0.5mm
Diagonal deviation	≤±0.5mm
Working voltage	380V±10% 50Hz
Total power	25kw
