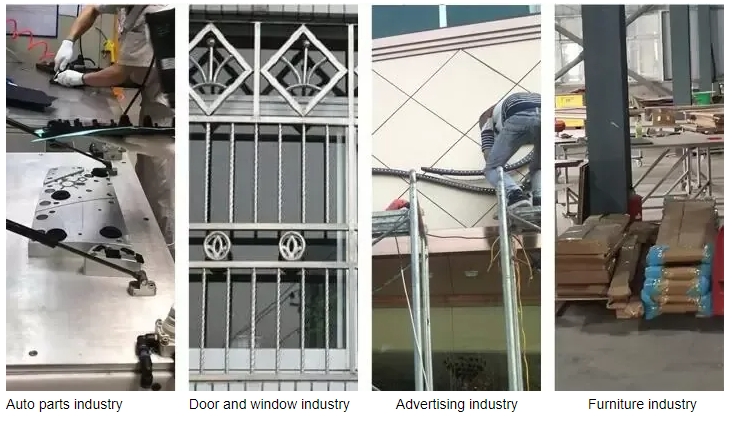

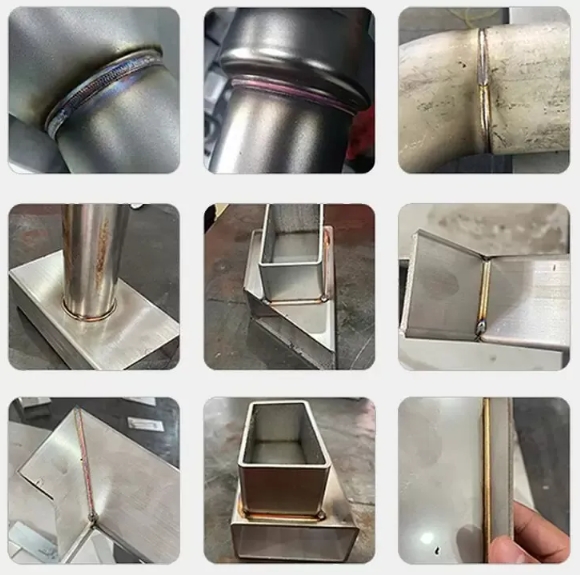

Widely applied in cabinets, kitchens, stair elevators, shelves, ovens, stainless steel doors and windows, guardrials,districbution boxes, stainless steel household industries.

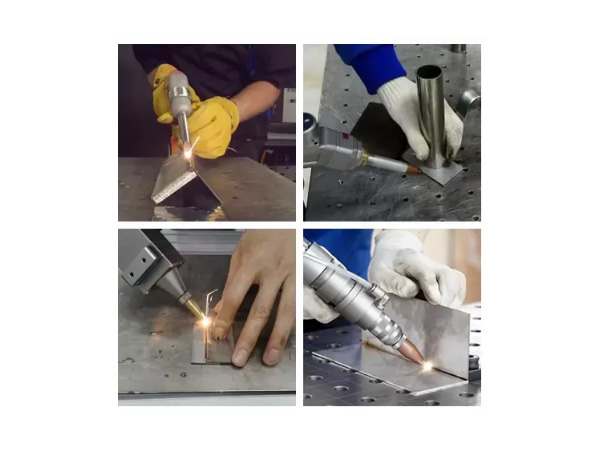

・Convenient and flexible for welding the large workpiece, such as sinks ans stainless steel kitchen cabinets,no need to move them to the workbench.
・The heat affected area is small during welding, and it will not cause deformation, blackening, and traces on the back of the workpiece or depression in the joints. The connection depth is large, the welding is firm and the melting is sufficient.

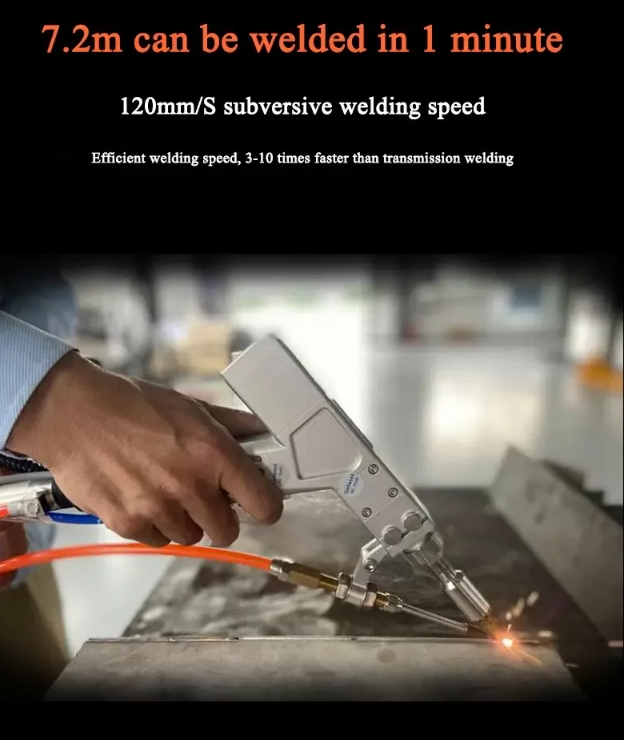

・High efficiency and greatly increased productivity. The welding speed is fast, 3-10 times faster than the traditional welding.
・Simple operation,easy to learn,saving your expensive technical labor costs!
High-performance laser: Raycus/JPT/MAX laser source available, Fast and efficient, Long life and stable(100000 hours).

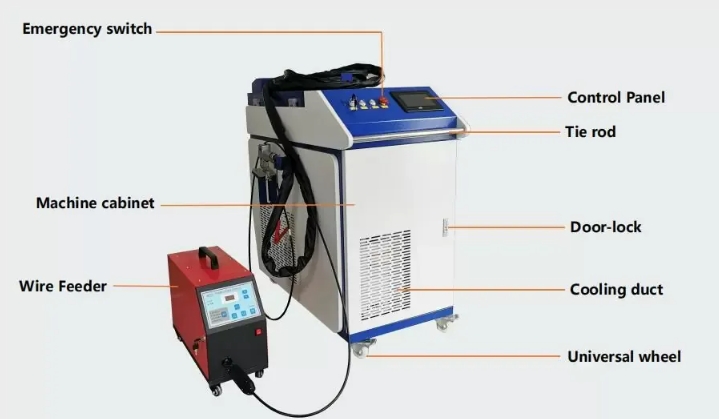

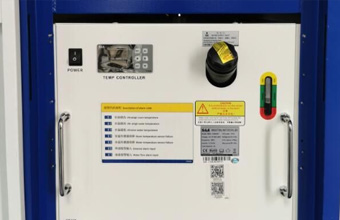

Built-in water cooler: Dustproof, fast cooling, Make sure the equipment is running at a constant temperature.

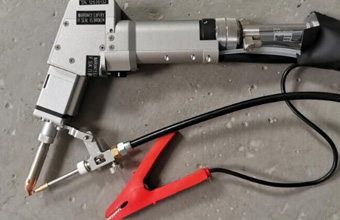

Hand-held gun: The overall lightness and flexibility, integrated gas automatic wire protection system feeding, and long service life.

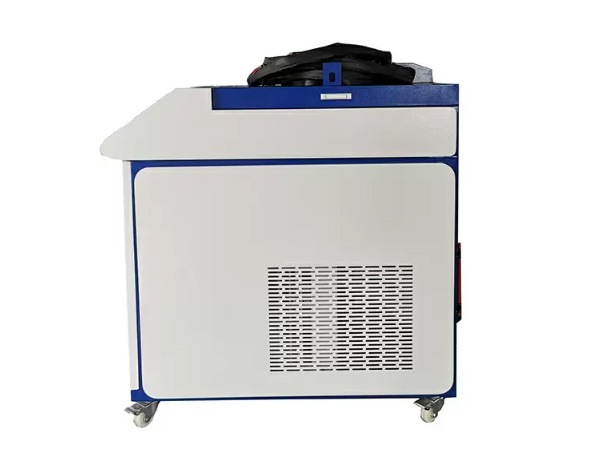

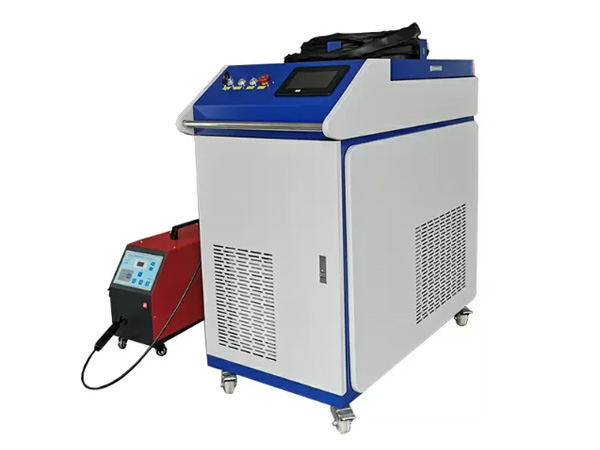

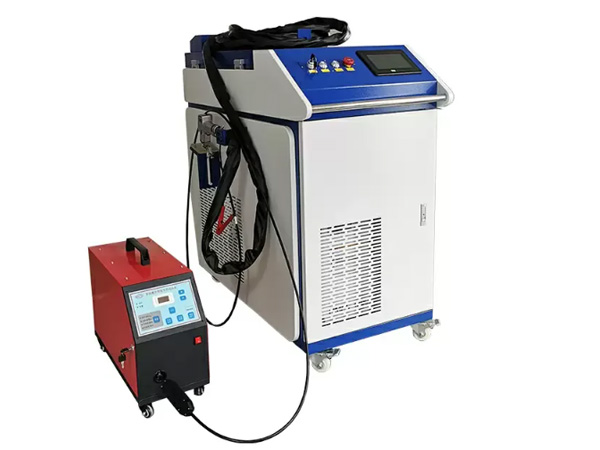

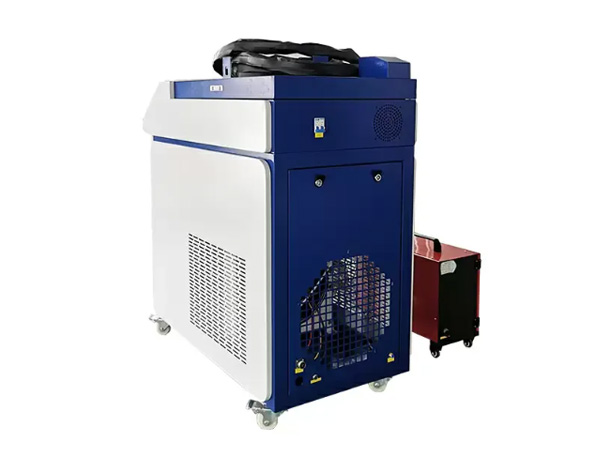

|Equipment Name||Hand-held Fiber Laser Welding Machine -STW1500E|
|Fiber laser Brand||MAX/RAYCUS/JPT/BWT|
|Controller&welding gun||RD Cam/Super weiye/Qilin|
|Fiber Length||Standard 8-10M, Suppurts up to 15M|
|Wave of working||Continuous / Modulation|
|Cooling water machine||industrial constant tempreture water tank|
Tempreture 15℃-35℃， Humidity ＜70% without condensation
|Recommend welding thickness||0.5-5mm|
|Operating voltage||AV220V 50HZ/60Hz; 380V/3PH/50HZ|

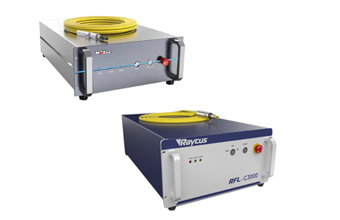

Fiber laser source
Choose different power according to the thickness of the plate（Option: 1500W/2000W/3000W）
・Excellent beam quality
・High reliability, high sealing
・High power stability
・Continuously adjustable power, fast switching response
・High electro-optical conversion efficiency
・Anti-high anti-reflection performanc
・High modulation frequency, editable waveform

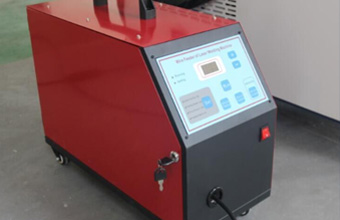

Single wire feeder/ Double wire feeder
