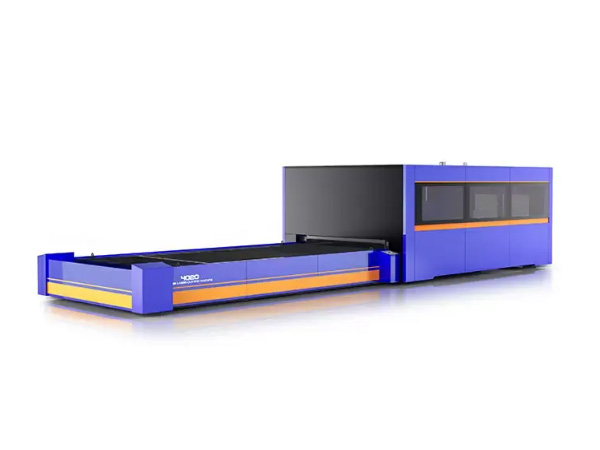

All cover exchange platform Fiber laser cutting machine QF4020AB-A

Imported linear guide rail and high precision rack Fully enclosed frame structure to avoid radiation Windows-based special numerical control system for Bochu/Weihong fiber laser cutting machine Max/Raycus/IPG fiber laser
Details

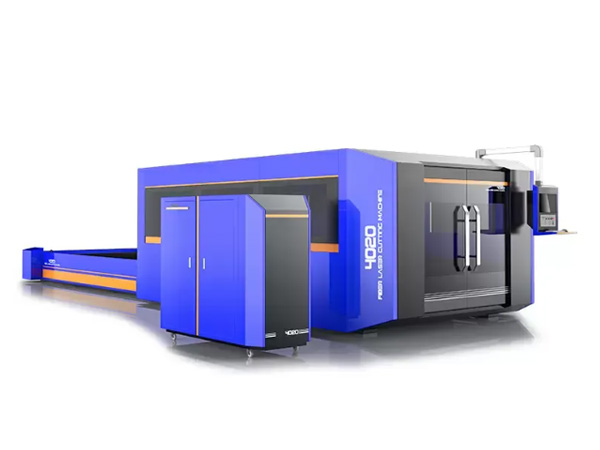

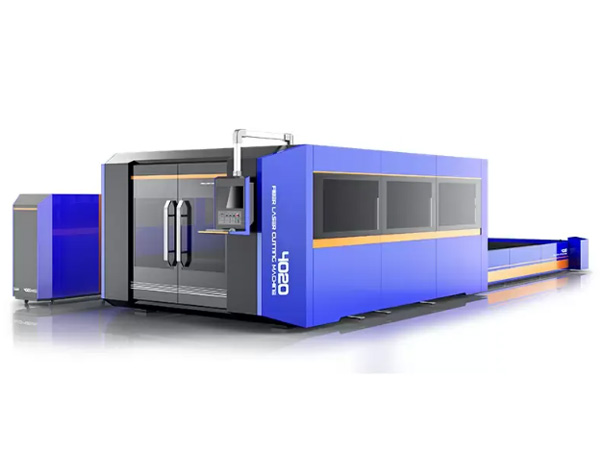

QF4020AB-A  All cover exchange platform Fiber laser cutting machine

Machine Features:

Adopting the gantry structure, the equipment has high precision, good rigidity, and stable operation. The machine tool is equipped with a universal roller device, and the push plate is labor-saving, convenient and fast.
The base of the machine tool is a frame structure welded by high-quality 16mm steel plates and pipes. The machine tool has undergone high-temperature annealing treatment, secondary aging treatment, and precision machining of large-scale gantry milling machines. These design and processing methods ensure that the machine tool has excellent shock resistance, high rigidity and stability. .
Equipped with a drop drawer, you only need to pull out the drawer when cleaning the drop.
The cutting head adopts a follow-up system to ensure that the height of the cutting head is consistent with the cutting material, thus ensuring the cutting effect.
Equipped with German Precitec capacitive non-contact automatic tracking system, it can automatically adjust the best focal length to ensure the best cutting effect of the whole board, and avoid material scrapping caused by focal length changes when the material is uneven.
The original imported rack drive and imported linear guide rail are adopted, and the patented technology of double servo motor drive system with racks on both sides is adopted, which effectively guarantees the speed and accuracy of laser cutting.

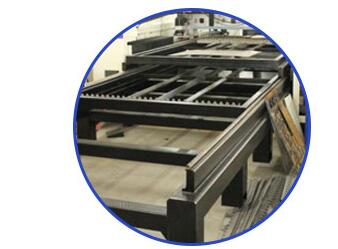

Machine bed:

Movable gantry structure, integral casting
The equipment has high precision, good rigidity, and stable operation. It adopts automatic exchange table,
The equipment can be loaded and unloaded while processing, which is convenient, quick and time-saving

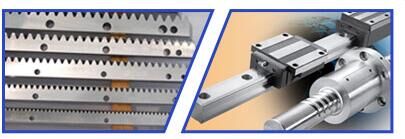

Taiwan imported guide rail and rack

High-precision transmission, double-sided linear guide rail guidance.
ATLANT rack adopts the most advanced grinding gear making process in the world, and the precision level can reach DIN5 level GB4 level, which is the highest precision that can be achieved in mass production in the world at present.

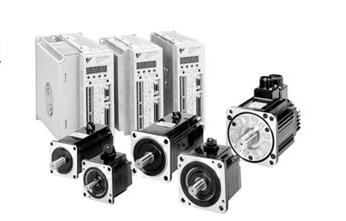

Servo motor imported from Japan/Taiwan

Stronger torque, faster and smoother operation

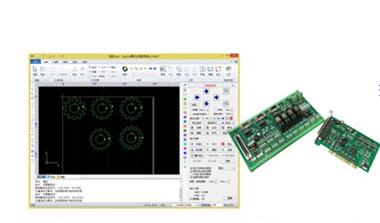

Cypcut/NC stuido controller system

Stable operation and strong compatibility
Using Cypcut CNC system, its control has the characteristics of stronger stability and better compatibility, so as to ensure the accuracy of the machine tool under high-speed motion

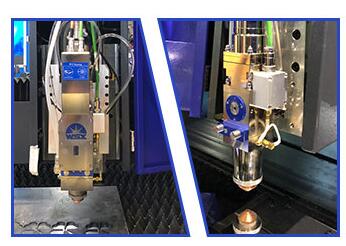

WSX/NS stuido/Cypcut laser cutting head

Optical Fiber Laser Cutting Head
Equipped with fiber laser cutting head and capacitive non-contact automatic tracking system, it can automatically adjust the best focal length

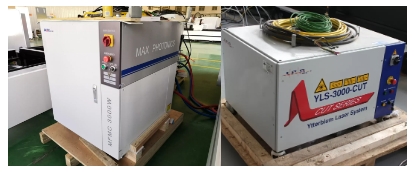

Max/Raycus/IPG fiber laser

High electro-optic efficiency, long working life, stable light source



Application field:

Used in sheet metal processing, aviation, aerospace, electronics, electrical appliances, subway accessories, automobiles,
Grain machinery, textile machinery, engineering machinery, precision parts, ships, metallurgical equipment, electrical
Ladders, household appliances, craft gifts, tool processing, decoration, advertising, metal external processing
And other manufacturing and processing industries.

Applicable material

Mainly used for cutting carbon steel, silicon steel,Stainless steel, aluminum alloy, titanium alloy, galvanized sheet,Pickling plate, galvanized plate, copper and others

Technical Parameters

Model QF4020AB-A
working area 2000x4000mm
Fiber Laser Power 6000w/8000w/10000w+(Customized,brand: Max/Raycus/ IPG)
Re positioning accuracy ±0.02mm
Max speed 120m/min
Power consumption 90kw
Voltage and frequency 380V/50HZ/60HZ
