CO2 Laser Fabric Cutting Machine STL1610F with Auto-Conveyor Venta de precios de costos
Actual: HOME> PRODUCTS> CO2 Laser>

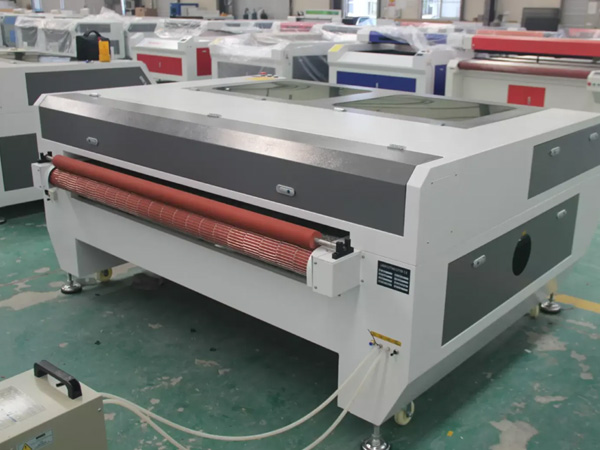

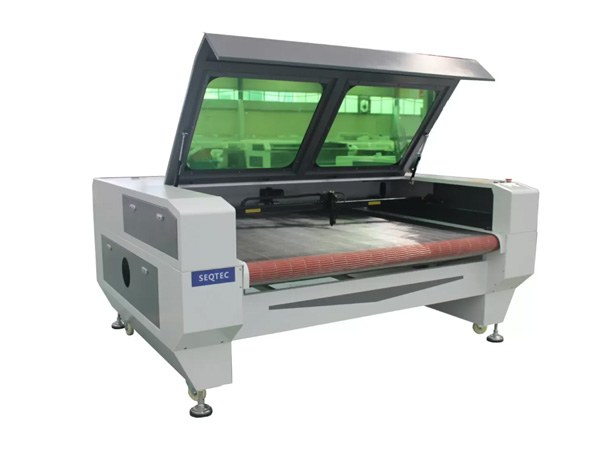

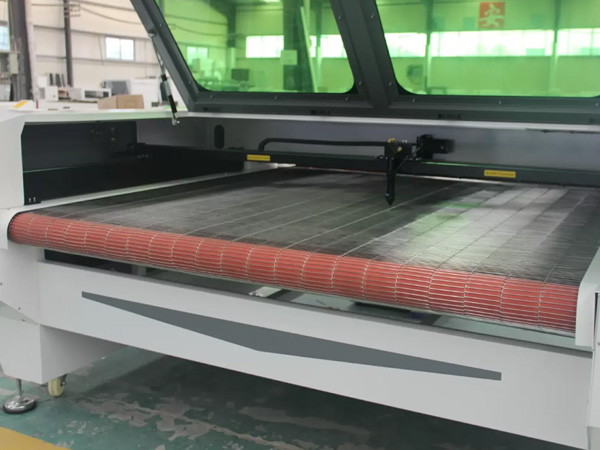

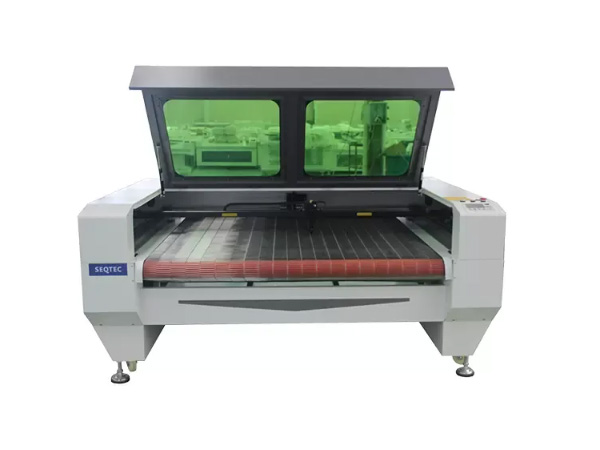

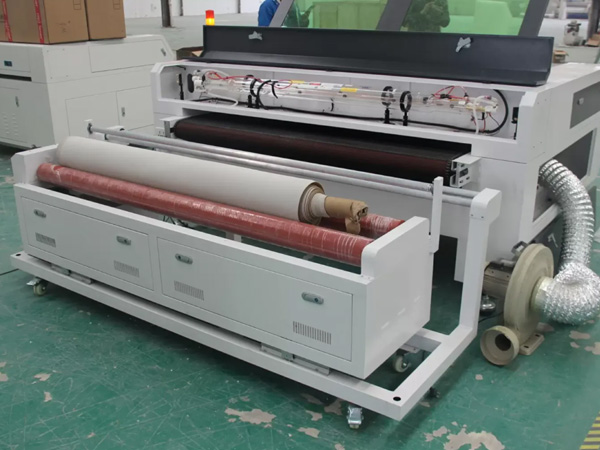

CO2 Laser Fabric Cutting Machine STL1610F with Auto-Conveyor

STL1610F fabric laser cutting machine is used for cutting soft material such as leather,pure cotton,silk,non-woven. The machine is equipped with auto feeding system.
Applicable Materials:

genuine leather, artificial leather, soft leather, decorative leather, packaging leather, etc, all kinds of leather materials, pure cotton, real silk, chemical fiber, denim, non-woven materials.

Model  STL1610F
Working area  1600mm*1000mm
Laser type  Sealed CO2 laser tube
Laser power  80w,100w,150w
Working table Auto feeding conveyor and CCD (Camera) available
Cooling system Water cooling and protection system
Engraving speed  0-800mm/s
Cutting speed 0-600mm/s
Resetting position accuracy  ±0.05mm
Minimum shaping character English1×1mm
Graphic format supported  BMP,HPGL,PLT,DST,AI
Controlling software  DSP control system
Compatible software  Coral Draw, Auto CAD, PS

Driving system

Working voltage  AC220V±10%,50-60Hz, 10A max
Operating temperature  0-45°C
Operating humidity  5-95%

Standard Accessories:

Air compressor
Water chiller
Exhaust fan(Double)
Tool box

Sample show:
