Machine Features：

・Integrated full steel body, low temperature tempering treatment,reduce the deformation rate;
・Adopt flying ray with spontaneous movement of laser tube and gantry, effectively improve the laser efficiency
・Super large laser processing format, suitable for large scale of mass production;
・Equipped with high power laser tube, it can be a cutting thickness of 30 mm acrylic plate;
・It uses USB put data interface with large mass storage device to provide high working speed and efficiency.
・Support kind of formats:CDR、DXF、PLT 、AI、 BMP、 DST、 JPG and other formats.

Application:

・Garment, leather, cloth toys, computer embroidery cutting, mould, crafts, bamboo and wood, advertising and building decoration, packaging and printing, paper and products, etc.
・Rubber, plastic, cloth, leather, woollens, crystal, organic glass, tile, jade, bamboo and wooden products, etc.

Technical Parameters

Model	STL1325P
Working Area	1300*2500mm
Laser Power	130W
Laser Type	CO2 Sealed Laser Tube, 10.6μm
Cooling Type	Water Cooling
Engraving Speed	0-60000mm/min
Laser Output Control	0-100% Set by Software
Min. Engraving Size	Chinese: 2.0mm2.0mm; English Letter: 1.0mm1.0mm
Highest Scanning Precision	2500DPI
Locating Accuracy	≤+0.01mm
Controlling Software	DSP Control System
Graphic Format Supported	DST,PLT,BMP,DXF,DWG,AI,LAS,etc
Compatible Software	TAJIMA,CORELDRAW,PHOTOSHOP,AUTOCAD,All type of AUTOCAD Sofeware in Cloth
Drive System	High-precision Stepper Motor
Auxiliary Equipments	Exhaust Fan and Air Exhaust Pipe
Power Supply	AC110V/220V±10%, 50HZ/60HZ
Working Environment	Temperature: 0-45℃, Humidity5-95%(No Condensate Water)
Option	Up & Down Table, Rotary Device, Auto-focus Device,Lifting table

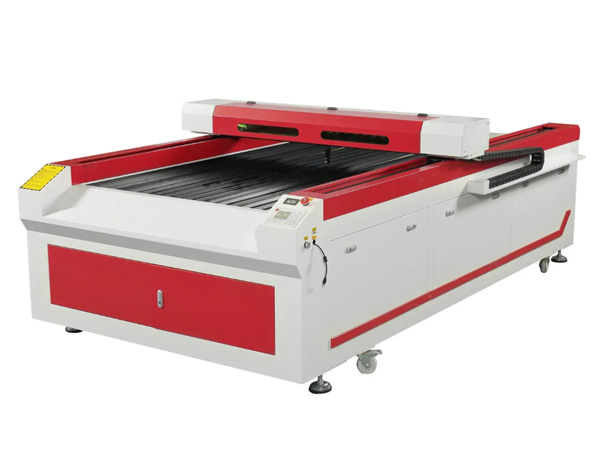

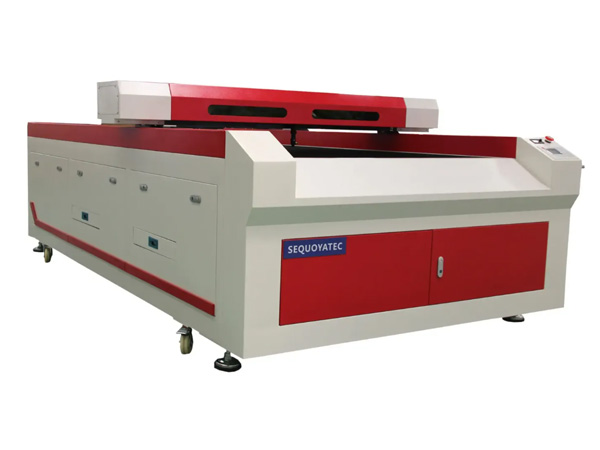

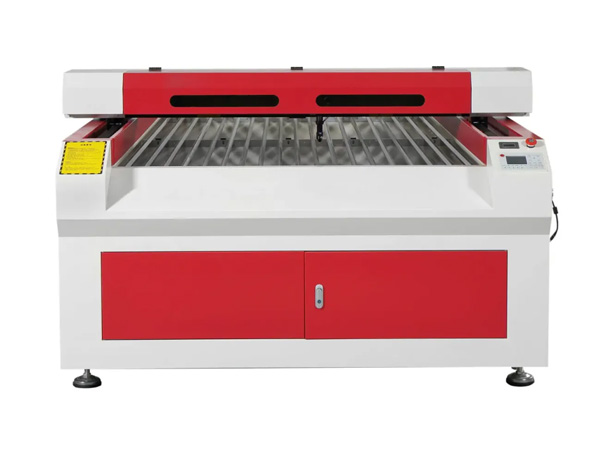

CO2 laser cutting machine STL1325P
