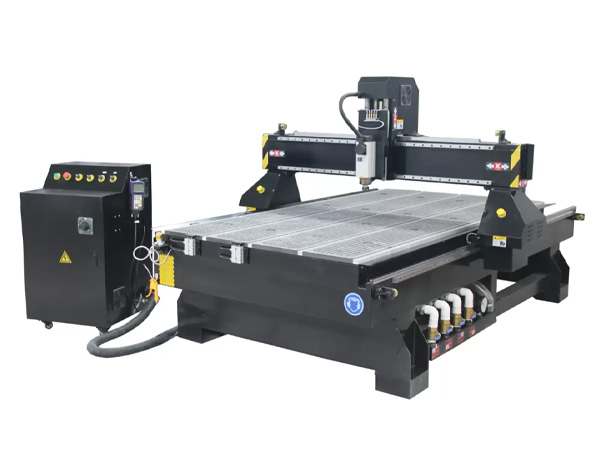

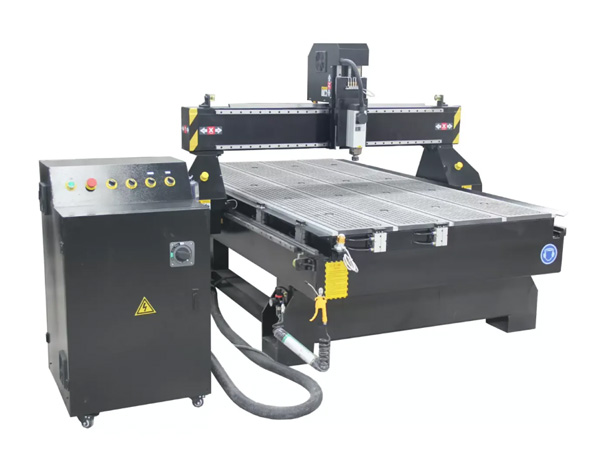

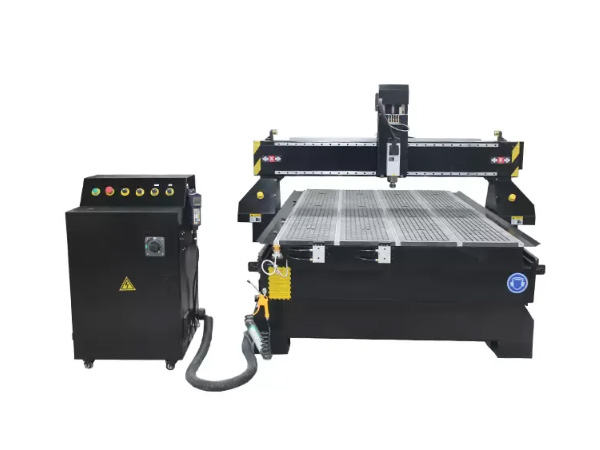

CNC Router
Simple operation and excellent effect
Improve accuracy, increase production, reduce waste and reduce operator costs. Thanks to intuitive and powerful operating software, 3 Axis CNC Router For Sale is as efficient as producing a large number of components when producing disposable parts.
Application types of 3 Axis CNC Router
Woodworking industry:
Three-dimensional wave board processing, cabinet doors, solid wood doors, craft wooden doors, paint-free doors, screens, craft window processing, shoe polishers, game machine cabinets and panels, mahjong tables, computer tables and auxiliary processing of panel furniture products.
Advertising industry:
Various materials for advertising signs, logo production, acrylic cutting, plastic molding, and advertising decoration products.
Mold industry:
It can engrave metal molds such as copper, aluminum, iron, etc., and it can also engrave non-metallic molds such as artificial marble, sandstone, plastic board, PVC pipe, and wood board.
Other industry:
It can engrave all kinds of large-scale relief sculptures and shadow sculptures, which are widely used in the craft gift industry.
Machine Features:
・Industrial control system , easy one button operation , high efficient. It can compatible with Type3 , Artcam , Alphacam , ARTCUT , JD Paint etc
・High hardness table with PVC engineering-plastics,(Vacuum worktable with T slot or PVC with T slot)
・Our electric spindle adopt High-speed bearing technology , With high Rotational speed , Low noise large power , Fast response Dynamic performance and stability . To meet the high speed work .
・Low voltage electrical components is the top brand of the international and inland,for example, ABB, Honeywell, Omron, AMC, CHNT,DELIXI.
・Electric cabinet independent design, easier to move..
Application:
Wood: can process cabinet , wood door , solid wood , plate-type , windows , table , chairs , etc
Decoration: screen,wave plate,huge-scale hanging,advertisement plates,markings making;
Arts: can engrave on man-made stone, wood, bamboo, marble, acrylic, double-colored board beautiful drawings and letters.
Technical Parameters:
Model
|
ST1325A
|
working area
|
1300x2500x200mm Option:1500x3000x200mm;2000x3000x200mm(Customized)
|
Spindle power
|
3.5kw China air cooling (Option:4.5kw,5.5kw water or air; HSD)
|
Drive system
|
Stepper motor(Option: Panasonic, Yaskawa,Delta servo motor and driver)
|
Guide
|
HIWIN/PMI(Taiwan)
|
Control system
|
DSP A11(Option:NC studio,mach 3,etc)
|
Max Running speed
|
30000mm/min
|
Max working speed
|
15000mm/min
|
Working accuracy
|
±0.05mm
|
Re-positioning accuracy
|
±0.02mm
|
Power supply
|
AC380/3Ph/50HZ(220V/1Ph/50Hz)
|
G.W.
|
1200kgs±
|
Accessories:
|
|
|
Dust collector
|
Air vacuum pump
|
Mist cooling set(For metal)
|

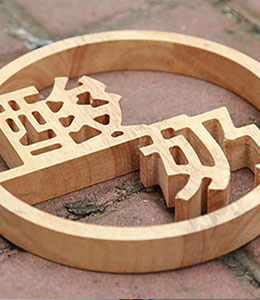

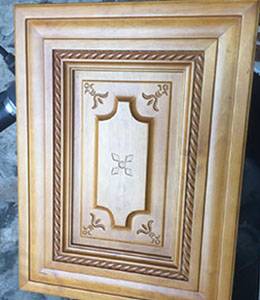

Sample show:
