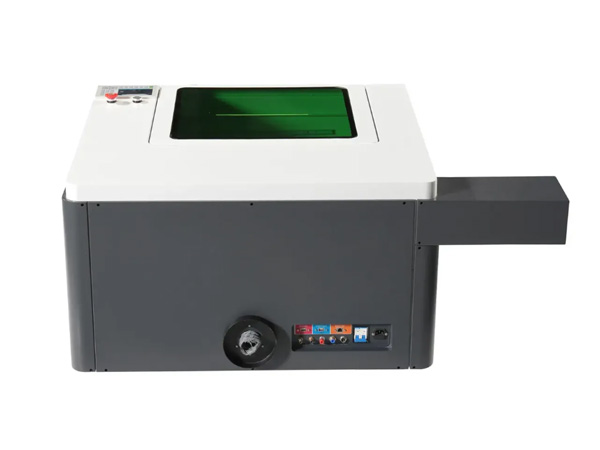

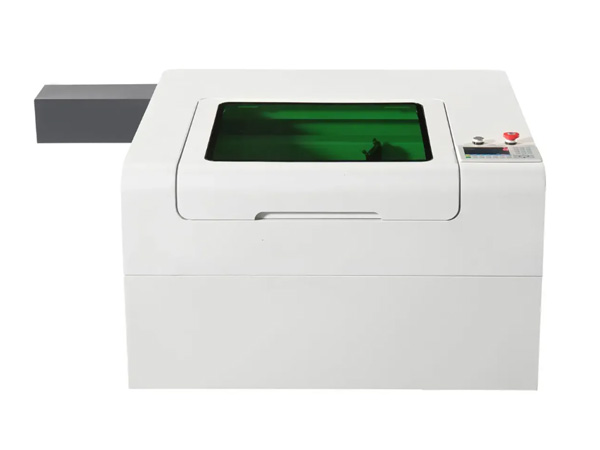

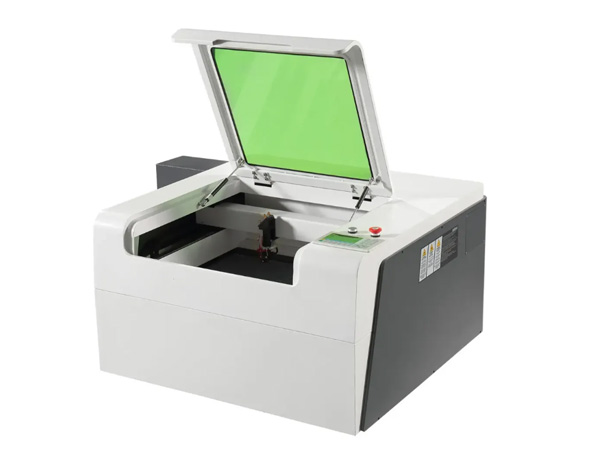

Product Name  :  CO2 Laser Machine STL6050A

STL6050A CO2 laser machine with 600x500mm working size, mainy used for engraving on non metal material suach as wood,MDF, acrylic etc.

Description

■ CO2 laser machine 600x400mm working size.

■ 40W

■ HIWIN/PMI square guide

■ Blade and Honeycomb worktable

■ Red dot location

■ Ruida 6442S control system

■ Exhaust fan

■ Air compressor

■ Water pump


Parameter

Model

STL6050A

Working Area

600*500mm

Laser Power

40W(Option: 50W/60W)

Laser Type

CO2 Sealed Laser Tube, 10.6μm

Cooling Type

Water Cooling

Engraving Speed

0-60000mm/min

Cutting Speed

0-40000mm/min

Laser Output Control

(0-100% Set by Software )

Min. Engraving Size

Chinese: 2.0mm*2.0mm, English Letter: 1.0mm*1.0mm

Highest Scanning Precision

4000DPI

Locating Precision

≤+0.01mm

Controlling Software

Ruida Control System

Graphic Format Supported

DST PLT BMP DXF DWG AI LAS,etc

Compatible Software

TAJIMA,CORELDRAW,PHOTOSHOP,AUTOCAD,etc

Drive System

High-precision 3-phase Stepper Motor

Auxiliary Equipments

Exhaust Fan and Air Exhaust Pipe

Power Supply

AC110V/220V±10%,50HZ/60HZ

Working Environment

Temperature:0-45℃,Humidity 5-95%(No Condensate Water)

Optional Spare Parts

 Rotary Device,Auto-focus Device,Lifting table,WIFI


Application

Material

Cut

Engrave

Acrylic, Plexiglass, Pmma, Perspex, Organic board, Double color plate

Plastic, PP, PET, PMMA, PS, PES, PA, Plastic Foils&Films, Polycarbonate, polyester or polyimide membrane keyboards

Wood, Bamboo, Veneer, MDF, Blasa wood, Plywood

Leather, Pig leather, Cow Leather, Sheep leather

Textile, cotton, silk, felt, lace, synthetic & technical textiles, aramid, polyester, fleece

×

Foam& Filter, Mats Polyester (PES), Polyethylene (PE), Polyurethane (PUR)

×

×

Neopren

×

×

Paper, Cardboard, Chipboard, Press Board

Stone, Ceramic, Granite, Marble, Natural stone, Pebble stone, Slate

Rubber stamps, Synthetic & Silicone Rubber, Natural rubber, Microporous foam

Silicone rubber, Synthetic rubber

Glass,Pressed glass, Float glass, Crystal glass, Mirror glass

×
