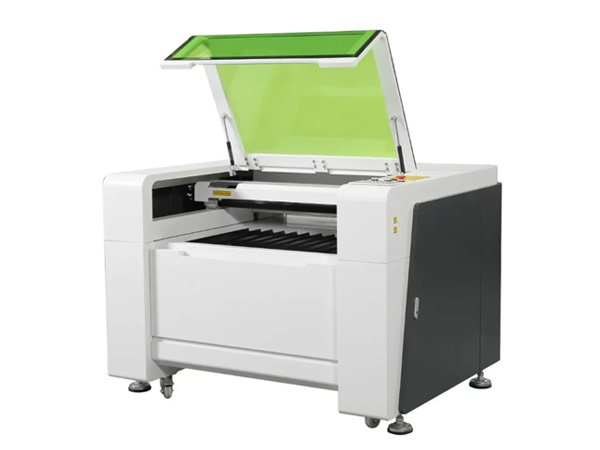

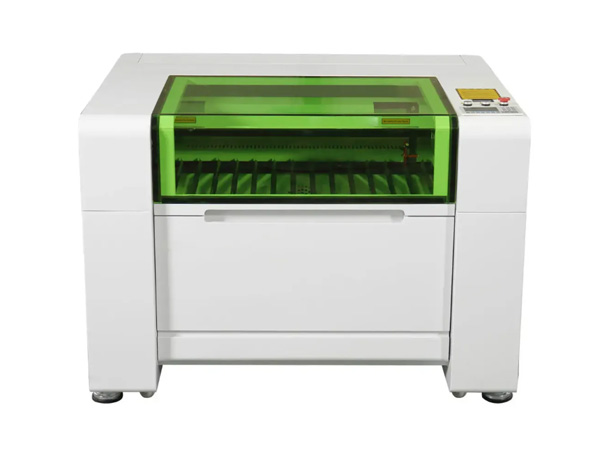

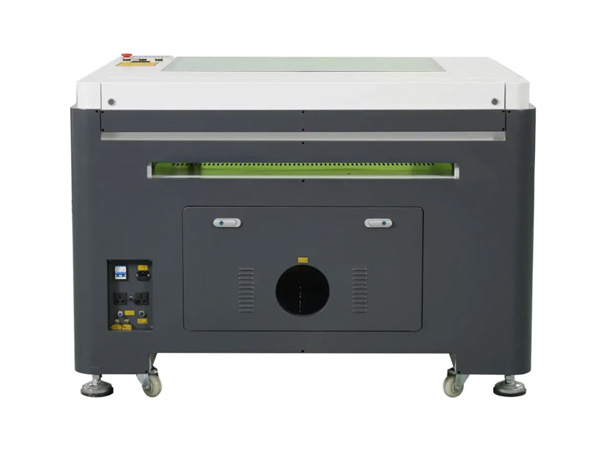

Product Name  :  CO2 Laser Machine STL9060P

CO2 laser machine for engraving and cutting non metal material.

Description

■ CO2 laser machine 900x600mm working size.

■ EFR F2 CO2 laser tube (Options power: F4,F6,F8; Options brand: Reci, Weiju)

■ HIWIN/PMI square guide

■ Blade and Honeycomb worktable

■ Red dot location

■ Ruida 6442S control system

■ Blade worktable+Honeycomb worktable

Parameter

Model

STL9060P

Working Area

900*600mm

Laser Power

80W/100W/120W/150W/180W

Laser Type

CO2 Sealed Laser Tube, 10.6μm

Cooling Type

Water Cooling

Engraving Speed

0-60000mm/min

Laser Output Control

0-100% Set by Software

Min. Engraving Size

Chinese: 2.0mm*2.0mm; English Letter: 1.0mm*1.0mm

Highest Scanning Precision

2500DPI

Locating Accuracy

≤+0.01mm

Controlling Software

DSP Control System

Graphic Format Supported

DST,PLT,BMP,DXF,DWG,AI,LAS,etc

Compatible Software

TAJIMA,CORELDRAW,PHOTOSHOP,AUTOCAD,All type of AUTOCAD Sofeware in Cloth

Drive System

High-precision Stepper Motor

Auxiliary Equipments

Exhaust Fan and Air Exhaust Pipe

Power Supply

AC110V/220V±10%, 50HZ/60HZ

Working Environment

Temperature: 0-45℃, Humidity5-95%(No Condensate Water)

Option

Up & Down Table,, Rotary Device,Auto-focus Device,WIFI;Laser power; Laser tube brand etc.

Application

Material

Cut

Engrave

Acrylic, Plexiglass, Pmma, Perspex, Organic board, Double color plate

Plastic, PP, PET, PC, PMMA, PS, PES, PA, Plastic Foils&Films, Polycarbonate, polyester or polyimide membrane

 keyboards

Wood, Bamboo, Veneer, MDF, Blasa wood, Plywood

Leather, Pig leather, Cow Leather, Sheep leather

Textile, cotton, silk, felt, lace, synthetic & technical textiles, aramid, polyester, fleece

×

Foam& Filter, Mats Polyester (PES), Polyethylene (PE), Polyurethane (PUR)

×

×

Neopren

×

×

Paper, Cardboard, Chipboard, Press Board

Stone, Ceramic, Granite, Marble, Natural stone, Pebble stone, Slate

Rubber stamps, Synthetic & Silicone Rubber, Natural rubber, Microporous foam

Silicone rubber, Synthetic rubber

Glass,Pressed glass, Float glass, Crystal glass, Mirror glass

×
