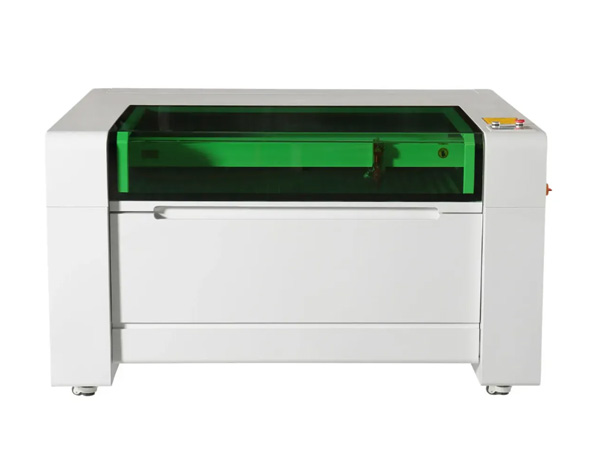

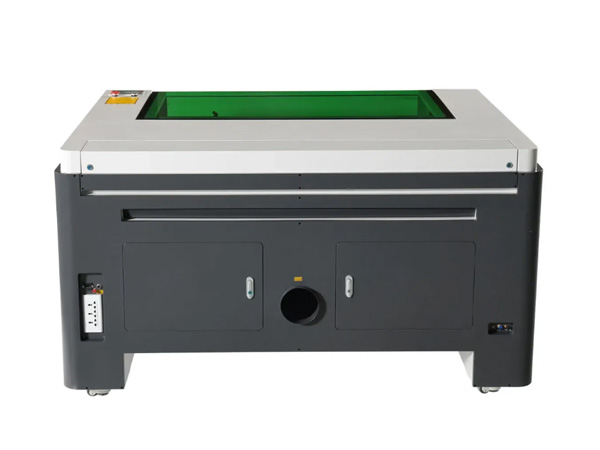

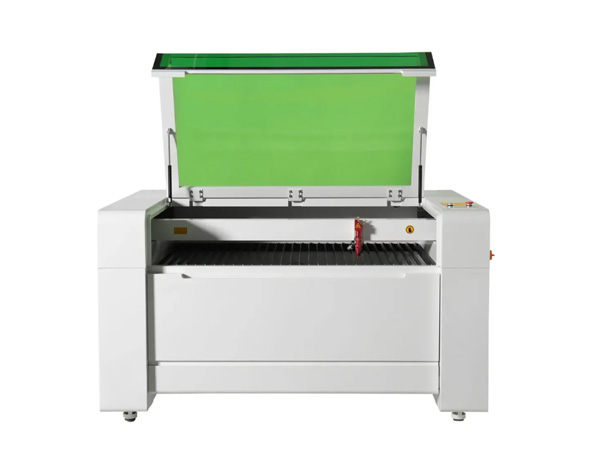

Product Name  :  CO2 Laser Machine STL5030A

Mini CO2 laser machine with 500x300mm working size, mainly used for engraving on non-metal material.

Description

■ Mini CO2 laser machine with 500x300mm working size.

■ 40W CO2 laser tube

■ HIWIN/PMI square guide

■ Blade and Honeycomb worktable

■ Red dot location

■ Ruida 6442S control system

Parameter

Model

STL5030A

Working Area

500*300mm

Laser Power

40W (Options:50W/60W)

Laser Type

CO2 Sealed Laser Tube, 10.6μm

Cooling Type

Water Cooling

Engraving Speed

0-60000mm/min

Cutting Speed

0-40000mm/min

Laser Output Control

(0-100% Set by Software )

Min. Engraving Size

Chinese: 2.0mm*2.0mm, English Letter: 1.0mm*1.0mm

Highest Scanning Precision

4000DPI

Locating Precision

≤+0.01mm

Controlling Software

Ruida Control System

Graphic Format Supported

DST PLT BMP DXF DWG AI LAS,etc

Compatible Software

TAJIMA,CORELDRAW,PHOTOSHOP,AUTOCAD,etc

Drive System

High-precision 3-phase Stepper Motor

Auxiliary Equipment

Exhaust Fan and Air Exhaust Pipe

power Supply

AC110V/220V±10%50HZ/60HZ

Working Environment

Temperature:0-45℃,Humidity 5-95%(No Condensate Water)

Optional Spare Parts

 Rotary Device,Auto-focus Device,Up-down worktable

Application

Mainly used for engraving on non-metal materil, such as bamboo, crystal, horn, print, organic glass, marble, cloth, leather, rubber, plastic etc, and art gift, stamp engraving.
