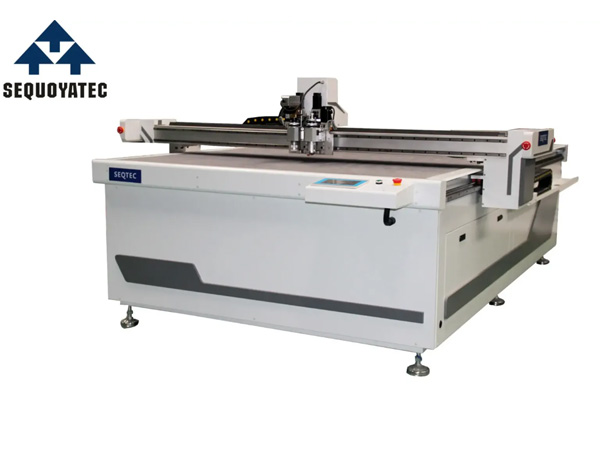

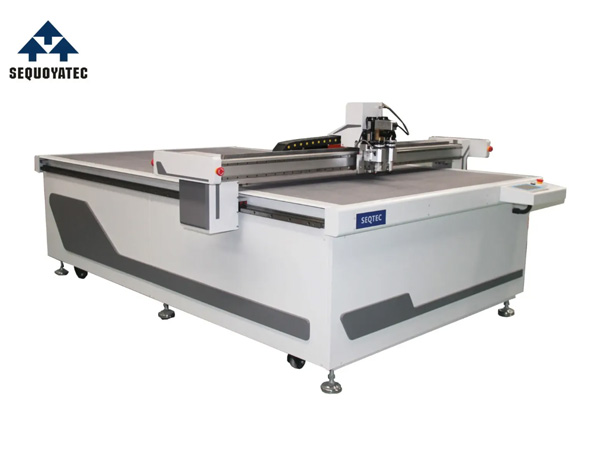

Flatbed plotter cutting STK2516N-2

Flatbed Cutter Machine with creasing wheel
Details
Flatbed cutter machine STK2516N, adopts Ruida 6584G control system,greatly reduce product rate and repair rate,mainly used in printing industry,advertising industry,sign industry, etc.

This machine can be used to cut all kinds of sheets like corrugated, paperboard, honeycomb board, plastics including KT Board, PVC expansion sheet, solid PVC Board, acrylic etc.

■ Welded thickness frame, more stable, more than ten years without deformation;
■ Ruida 6584G control system, easy to use;
■ Working size customized;
■ Servo motor and driver ensure the cutting precision;
■ Gear transmission + HIWIN square guide;
■ According to your cutting requirements to choose suitable head and knife

■ Without pollution;






Model STK2516N
Working size 2500*1600mm(customized size)

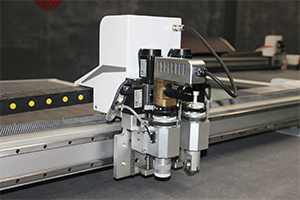

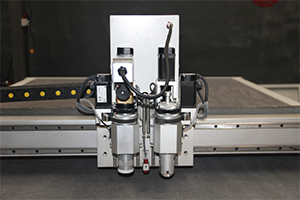

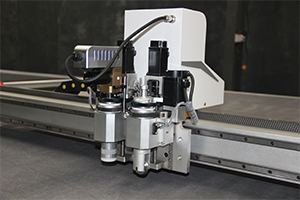

Single High speed oscillation knife tool +Red dot+ Creasing tool
Operation Properties Work with computer synchronously for quick data transmission,multi-page file in one time
Cutting Speed 300-1000mm/s(Depend on different materials)
Cutting Thickness ≤40mm
Cutting materials All kinds of adhesive, PP synthetic paper, corrugated cardboard, yellow thick cardboard, red cardboard, PVC board, honeycomb board, PVC foam board, acrylic, KT board, aluminum composite panels, fiber in the floor and rubber plates, thick foam etc
Option Pen, Pneumatic Oscillating tool, high-speed water-cooled milling tool, CCD camera registration, Drag knife tool, Kiss cut tool, V-cut tools, Router, Creasing tool , etc.
Fixing Method Vacuum system
Repeat Precision ≤0.05mm
Software Resolution 0.01mm
Interface Ethernet port
Format Compatible AI, Auto CAD, core draw etc
Driving System Imported servo motor, high precision linear guide, precision ball screw
Voltage AC220V/380V±10% 50HZ
Pump Power 9.0KW
Total Fixed Power 11KW
Working Environment Tmep: 0℃-35℃ Humidity: 35%-80%

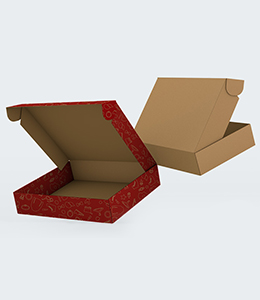

Application:

All kinds of adhesive, PP synthetic paper, corrugated cardboard, yellow thick cardboard, red cardboard, PVC board, honeycomb board, PVC foam board, acrylic, KT board, aluminum composite panels, fiber in the floor and rubber plates, thick foam etc
