This machine is for welding stainless steel, iron sheet, aluminum, copper, alloy, steel. Welding without smoke, no glare,ultra-low noise!

Widely applied in cabinets, kitchens, stair elevators, shelves, ovens, stainless steel doors and windows, guardrials,districbution boxes, stainless steel household industries.

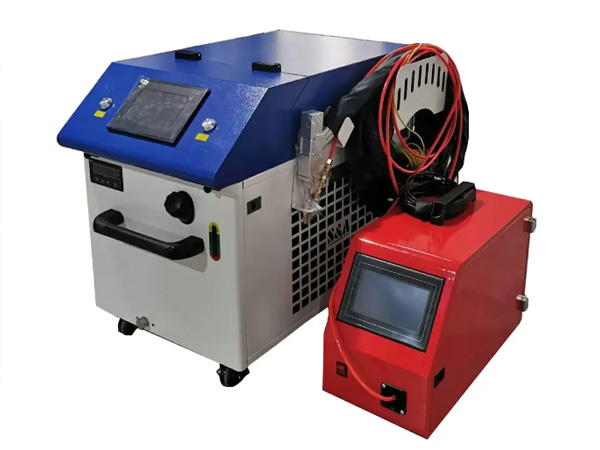

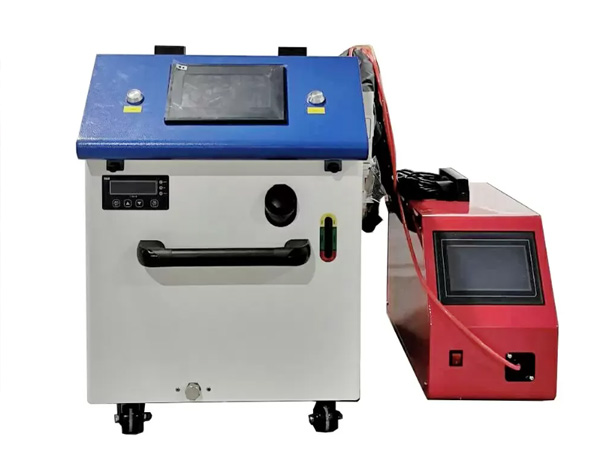

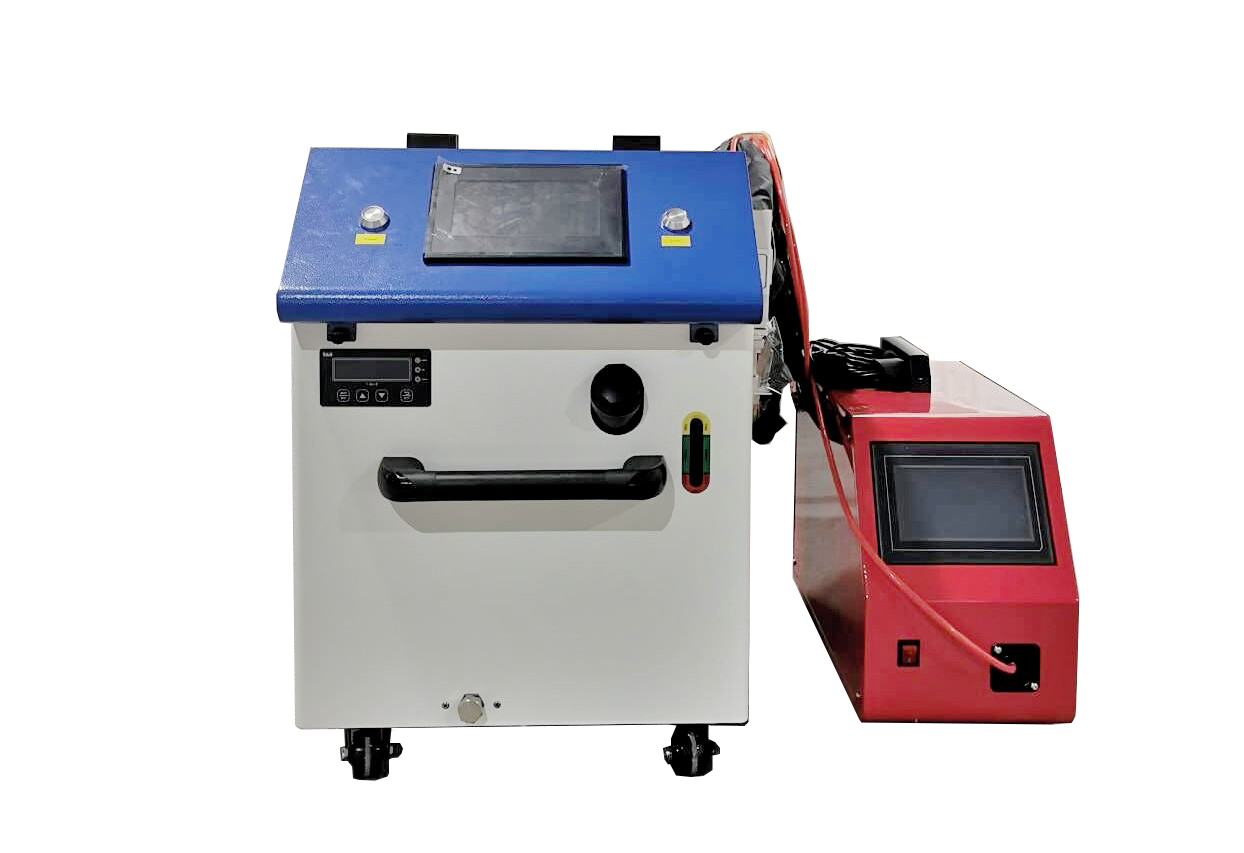

1500w Laser Welding Machine Equipment Advantages

1. The welding of large workpieces is convenient and flexible, such as sinks, stainless steel kitchen cabinets, etc., without moving to the workbench.
2. The heat-affected area during welding is small, and it will not cause deformation, blackening, traces or joint depressions on the back of the workpiece. The connection depth is large, the welding is firm, and the melting is sufficient.
3. High efficiency and greatly improved productivity. The welding speed is fast, 2-10 times faster than traditional welding.
4. Simple operation, easy to learn and understand, save your expensive technical labor cost!
5. High energy density, low heat input, small thermal deformation, and narrow melting depth in the heat of the melting zone and the heat-affected zone.
6. The cooling speed is fast, the weld structure is fine, and the joint performance is good.
7. The welding seam is thin, the penetration is large, the taper is small, the precision is high, and the appearance is smooth, smooth and beautiful.
8. The welding seam is beautiful, uniform, no welding marks, no discoloration, and no grinding in the later stage.

Technical Parameters:

Equipment Name	Handheld Fiber Laser Welding Machine
Fiber laser Brand	MAX/RAYCUS/IPG/JPT/BWT
Laser Power	1500W/2000W/3000W
Laser Wavelength	1070NM
Fiber Length	Standard 8-10M, Suppurts up to 15M
Wave of working	Continuous  / Modulation
Speed range	0-120mm/s
Cooling water machine	industrial constant tempreture water tank
Working environment	Tempreture 15℃-35℃， Humidity ＜70% without condensation
Recommend welding thickness	0.5-5mm
Welding gap requirment	＝0.5mm
Operating voltage	AV220V 50HZ

1500w Laser Welding Machine Application:

This machine is for welding stainless steel, iron sheet, aluminum, copper, alloy, steel, etc. Widely used in the kitchen and bathroom industry, household electrical appliances industry, advertising industry, mold industry, doors and Windows industry, crafts industry, home products industry, furniture industry, lighting industry, auto parts industry, etc.

Samples Show:
